Maxim Integrated MAX11213EVKIT+ 评估套件

Maxim Integrated MAX11213EVKIT+ 评估套件是一块完全组装的电路板，用于评估MAX11213超低功耗、高分辨率、串行输出(ADC)模数转换器。该 Maxim Integrated 评估套件由 MAX11213 评估板和软件组成。MAX11213EVKIT+ 包括 Windows XP®-、Windows Vista®- 和 Windows® 7-兼容软件，可提供图形用户界面(GUI)，用以测试 MAX11213 ADC 的各种性能。该评估套件通过 USB A-to-B 线缆与 PC 连接。

特性

  • Windows XP-, Windows Vista-, and Windows 7-Compatible Software
  • USB-PC Connection (Cable Included)
  • USB Powered (No External Power Supply Required)
  • On-Board Isolated Power Supplies Rejecting Power Line Noise
  • On-Board Optocouplers Isolating ADC from Other Circuitry
  • Real-Time Data Acquisition through USB
  • Proven PCB Layout

应用

  • Battery Applications
  • Portable Instrumentation
  • Sensor Measurement (Temperature and Pressure)
  • Weigh Scales

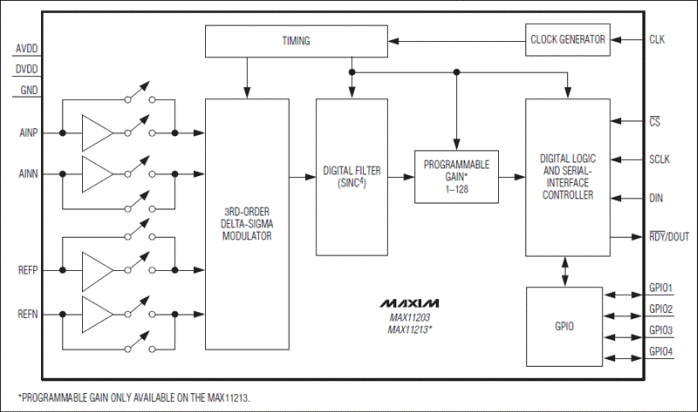

MAX11213 Block Diagram

Maxim Integrated MAX11213EVKIT+ 评估套件
