Amphenol Wilcoxon ILA210 Accelerometer Inline Adapter

Amphenol Wilcoxon ILA210 Accelerometer Inline Adapter converts analog vibration signals from IEPE accelerometers into digital Modbus RTU data reliably and seamlessly for industrial control and monitoring systems. This device operates at a -20°C to +80°C temperature range. The ILA210 accelerometer adapter is a compact, rugged solution that brings high-quality vibration analytics directly into industrial control systems via Modbus. By digitizing proven IEPE sensors, the ILA210 extends vibration monitoring to applications where digital sensors are unavailable. Applications include cement, food and beverage, machine tool, metals processing, mining, oil and gas, pharmaceutical, power generation, water and wastewater, and wind power.

Features

Compatible with IEPE vibration or dual-output (vibration and temperature) sensors
Modbus RTU output
Frequency bands align with ISO 10816-3 and 20816-3 guidelines

Output of vibration spectrum and FFT data up to 10kHz
Utility software for configuration

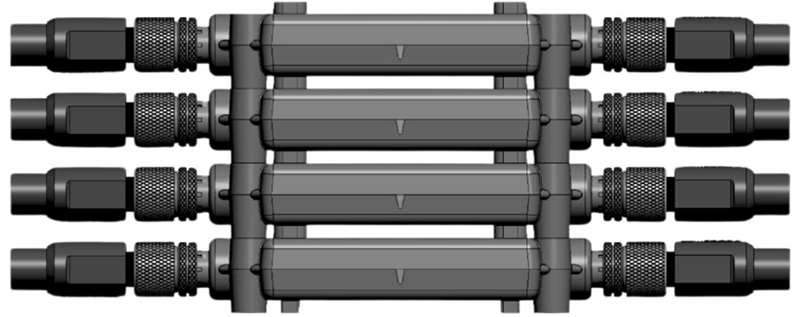

Stackable on a DIN rail or panel mount

Applications

Cement
Food and beverage
Machine tool
Metals processing
Mining
Oil and gas

Pharmaceutical
Power generation (balance of plant)
Water and wastewater
Wind power

Specifications

Inputs:
- IEPE accelerometers (1mV/g to 1000mV/g)
- Optional dual-output vibration + temperature sensors
- 1Hz to 10kHz frequency response range
- Sampling rate up to 25.6kHz (vibration)
Outputs:
- Modbus RTU (RS-485)
- Overall metrics (acceleration, velocity, and displacement), time waveform, and FFT spectrum
12V to 24V power range
