ams OSRAM OSRAM PointLED增强型光功率LED
OSRAM PointLED®增强型光功率LED为圆形组件，可穿孔安装，装在PCB内部或 PCB上方几乎看不见，因此PointLED很适合空间受限的应用。
特性
- Package: white SMT package, colorless clear silicone resin
- Compact round 2mm diameter package
- 0.775 total height
- Wide variety of color options, including Amber, Blue, Cool White, Green, Orange, Red, Super Red, White, and Yellow
- UX:3 chip technology
- 120° viewing angle
- ESD: 2kV according to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- -40°C to +100°C operating temperature range
- AEC-Q101 options available
应用
- Backlighting
- Replacement for miniature lamps
- Indicator lighting
- Signal and symbol illumination
- Automotive interior lighting
- Coupled to light guides
- Optical indicators
- Effects lighting
Related Products
ams OSRAM Power TOPLED® Enhanced Thinfilm LEDs
Powerful member of the TOPLED family that can handle a max forward current up to 70mA.
ams OSRAM TOPLED® Enhanced Optical Power LEDs
SMT LEDs with integrated reflector and feature wide viewing angle.
ams OSRAM SIDELED® Enhanced Thinfilm LEDs
Right angle SMT devices featuring an integrated reflector.
Related Solutions

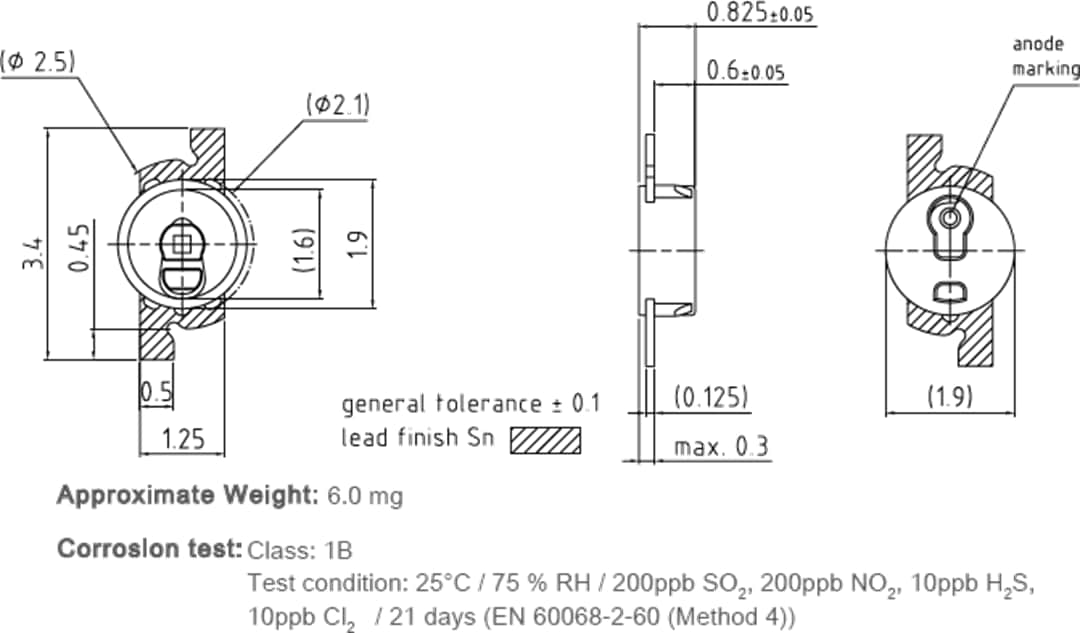

Package Outline
