Analog Devices / Maxim Integrated 用于RS-485的完全隔离收发器解决方案
Maxim Integrated和HALO Electronics共同开发了面向RS-485/Profibus高速工业应用的完全隔离的收发器解决方案。Maxim RS-485/Profibus半双工DP收发器可提供电隔离（2750V或5000V），通过断开接地环路提高通信性能。这样还能降低因端口之间的较大接地电位差异导致的噪声。
HALO隔离变压器为电源提供电流隔离（2750V或5000V）。这些变压器的设计采用了最佳匝比和ET常数，用于配合Maxim收发器使用。使用两种解决方案时，电缆和电路UART侧之间的信号与电源完全隔离。
特性
- HALO TGMS-14 (supplemental insulation) and TGMR-14 (reinforced insulation) isolation transformers are specifically designed for use with MAX14940, MAX14943, MAX14946, and MAX14949 RS-485/Profibus transceivers
- 2750Vrms or 5000Vrms isolation voltages
- Supplemental and reinforced insulation
- Optimized ET constant
- Toroidal design minimizing stray magnetic flux
- UL/DEMKO recognized

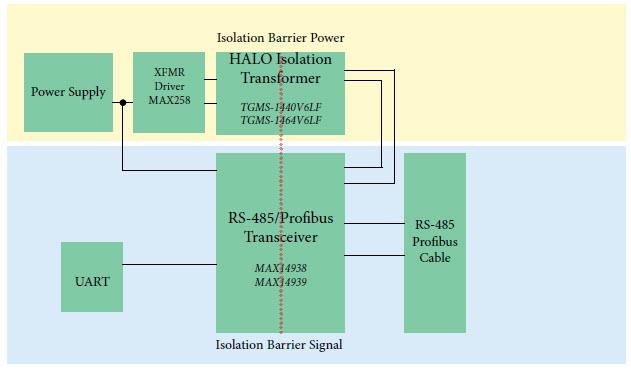

框图
MAX14940解决方案产品
HALO Electronics DC/DC Isolation Magnetic Transformers
Toroidal and bobbin wound DC/DC converter transformers for leading DC/DC converter controller ICs.
MAX14938/MAX14939解决方案
MAX14938/MAX14939解决方案产品
HALO Electronics DC/DC Isolation Magnetic Transformers
Toroidal and bobbin wound DC/DC converter transformers for leading DC/DC converter controller ICs.
查看HALO Electronics完全隔离收发器解决方案
HALO Electronics Fully Isolated Transceiver Solutions for RS-485
Fully isolated transceiver solutions for RS-485/Profibus high speed industrial applications.
