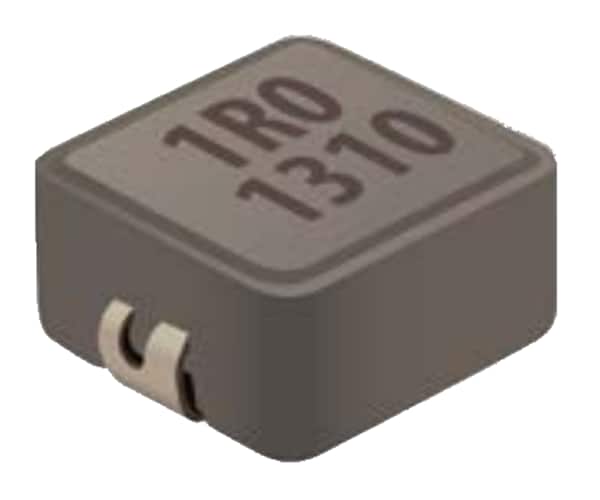

Bourns SRP5030TA 屏蔽型功率电感器
Bourns SRP5030TA 屏蔽型功率电感器采用屏蔽结构，具有羰基粉芯、高饱和电流以及 0.15-22μH 的电感范围。 SRP5030TA 系列符合 AEC-Q200 标准和RoHS 指令，不含卤素。 应用包括汽车系统、直流/直流转换器以及电源。
特性
- Carbonyl powder core
- Shielded construction
- High saturation current
- AEC-Q200 qualified
- Halogen free
- RoHS compliant
应用
- Automotive systems
- Driver assistant
- Information
- Entertainment
- Lighting
- DC/DC converters
- Power supplies
规范
- 0.1µH to 10µH inductance range at 100KHz, 1V
- ±20% or ±30% inductance tolerance
- DCR range
- 2.5mΩ to 110mΩ typical
- 3mΩ to 128mΩ maximum
- 5 to 20 minimum Q range at 100KHz, 1V
- 18MHz to 320MHz typical SRF range
- Moisture sensitivity level (MSL) 1
- -55°C to +150°C temperature range (temperature rise included)

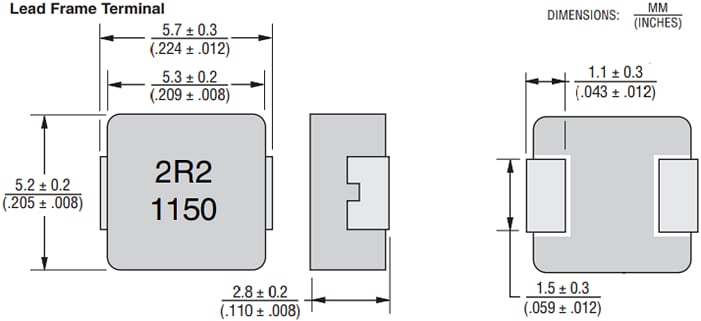

Dimensions
