Cree LED JB3030, JE2835, & JR5050 Mid-Power LEDs

Cree LED JB3030, JE2835, and JR5050 Mid-Power LEDs offer mid-power light output, high efficacy, and excellent value in a reliable package. These LEDs feature 25ºC flux binned, 85ºC chromaticity binned, 6500K to 2700K ANSI CCTs, and 5V reverse voltage. These mid-power LEDs operate at -40ºC to +105ºC temperature range and 125ºC LED junction temperature. The LEDs are UL recognized component (E495478). Typical applications include troffers, panel, and outdoor area lights.

JB3030 Mid-Power LEDs are optimized for applications where mid-power and smooth appearance are critical. The JB3030 LEDs are 3.0mm x 3.0mm x 0.5mm, an industry-standard size.

JE2835 Mid-Power LEDs are optimized for low-density lighting applications where mid-power and smooth appearance are critical. The JE2835 LEDs are 2.8mm x 3.5mm x 0.7mm, an industry-standard size.

JR5050 J Series 5050 LEDs deliver high-power light output, high efficacy, and excellent value in a reliable package. These LEDs are optimized for medium‑density lighting applications where high efficacy and long lifetime are critical, such as street lights, outdoor areas, and indoor directional lighting.

Features

3V and 6V configurations
Flux binned at 25°C, chromaticity binned at +85°C
6500K to 2700K ANSI CCTs available
70, 80, and 90 CRI available for all CCTs
RoHS and REACH compliant
UL recognized component (E495478)
-40°C to +125°C operating temperature range
+125°C LED junction temperature
5V reverse voltage

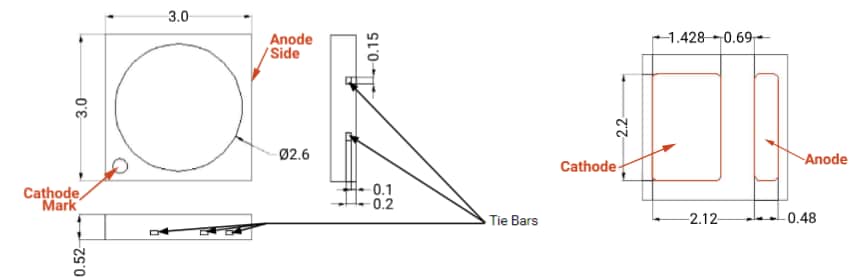

JB3030:
- 3.0mm x 3.0mm x 0.5mm industry-compatible size
- 14°C/W thermal resistance

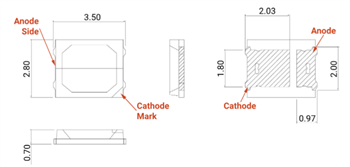

JE2835:
- 2.8mm x 3.5mm x 0.7mm industry compatible size
- 20°C/W thermal resistance
JR5050
- 5.0mm x 5.0mm x 0.7mm industry‑compatible size
- 3°C/W thermal resistance
