Cree LED J Series® 2835 LED
Cree LED J Series® 2835 LED专门针对要求高光效和平滑外观的低密度照明应用进行了优化。2835 LED采用3V配置以及行业标准2.8mm x 3.5mm x 0.7mm 封装。这些LED在25°C时具有光通量和色度分档，相关色温 (CCT) 范围为6500K至2200K，显色指数 (CRI) 为70、80、90和95。2835 LED是筒灯、灯头、灯具和面板灯的理想之选。
特性
- 行业兼容封装
- 尺寸为2.8mm x 3.5mm x 0.7mm
- 3V配置
- 可提供6500K至2200K ANSI CCT
- 6500K至2700K CCT最低显色指数分别为70、80和90
- 2200K CCT的最低显色指数为80和90
- 6500K、5000K、4000K、3500K、3000K和2700K的最低显色指数为95
- 25°C时的光通量和色度分档
- 广泛的性能选择
- 符合RoHS和REACH标准
- UL认证元件 (E495478)
应用
- 触发器
- 线性应用
- 高棚灯/低棚灯
- 筒灯
- 灯具
视频

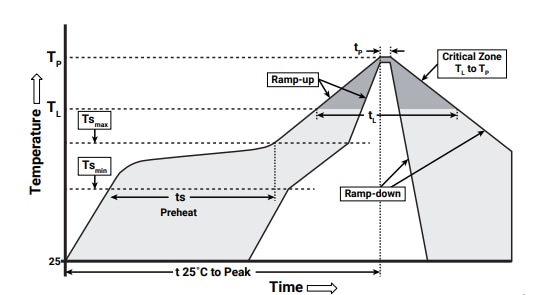

回流焊特性
相关LED
Cree LED General Indoor Lighting
Offers a complete portfolio of LEDs optimized for indoor lighting applications.
Cree LED Architectural & Entertainment Lighting
Brings excitement and drama to building exteriors, landmarks, concerts, and other live events.
Cree LED Transportation Lighting
Targets Automotive/Emergency Vehicle Lighting (EVL) applications that require maximum light output.
Cree LED Human Centric Lighting/Circadian Stimulus
J Series® 2835 3V N-Class LEDs allow adjustment of the light spectrum for circadian entrainment.
Cree LED J Series™ MidPower LED
具有高效率、低功耗、经济性和可靠的封装。
Cree LED J Series® 2835 J-/N-Class Precision Dimming LEDs
Combines high efficacy and excellent value in a 2.8mm x 3.5mm x 0.7mm reliable package.
Cree LED VB192/VB256标准LED线性PCBA
采用J Series® 2835 N级、J级或G级LED配置。
| 物料编号 | 数据表 | 波长/色温 | 光通量/辐射通量 | 显色指数 - CRI |
|---|---|---|---|---|
| JE2835BWT-N-H50GA0000-N0000001 |  |
5000 K | 75 lm | 80 |
| JB2835BWT-G-H22GA0000-N0000001 | |
2200 K | 25 lm | 80 |
| JE2835BWT-N-H40GA0000-N0000001 | |
4000 K | 75 lm | 80 |
| JE2835BWT-N-U30GA0000-N0000001 | |
3000 K | 60 lm | 90 |
| JE2835BWT-N-U50GA0000-N0000001 | |
5000 K | 63 lm | 90 |
| JB2835BWT-G-H30GA0000-N0000001 | |
3000 K | 27 lm | 80 |
| JB2835BWT-G-U40GA0000-N0000001 | |
4000 K | 25 lm | 90 |
| JE2835BWT-N-H35GA0000-N0000001 | |
3500 K | 72 lm | 80 |
| JE2835BWT-N-H57GA0000-N0000001 | |
5700 K | 75 lm | 80 |
| JB2835BWT-G-H40EA0000-N000P001 | |
4000 K | 33 lm | 80 |
