Cree LED XLamp XP-L LED
科锐®XLamp XP-L LED® 是首款市场可购的、可在 350mA 电流下提供突破性的高达 200lm/w 光效的单片 LED。科锐 XLamp XP-L LED 开创性地将基于科锐出品的市场领先的 XLamp XP-G LED 的照明设计性能直接提高 50% 以上，可视为对其的一次升级。作为行业内唯一的高密度级分立 LED 产品系列中亮度最高的成员，全新 XP-L LED 重新定义了 LED 照明的系统性能、成本和尺寸。
特性
- White, 70-CRI white, 80-CRI white, 85-CRI White, and 90-CRI white
- ANSI-compatible chromaticity bins
- Binned at +85°C
- 3000mA maximum drive current
- Low 2.5°C/W thermal resistance
- 125° High-Density, 115° High-Intensity viewing angles
- +30ºC/85% RH unlimited floor life
- Reflow solderable per JEDEC J-STD-020C
- Electrically neutral thermal path
应用
- Directional
- Low-/high-bay
- Roadways and parking
- High-end portable

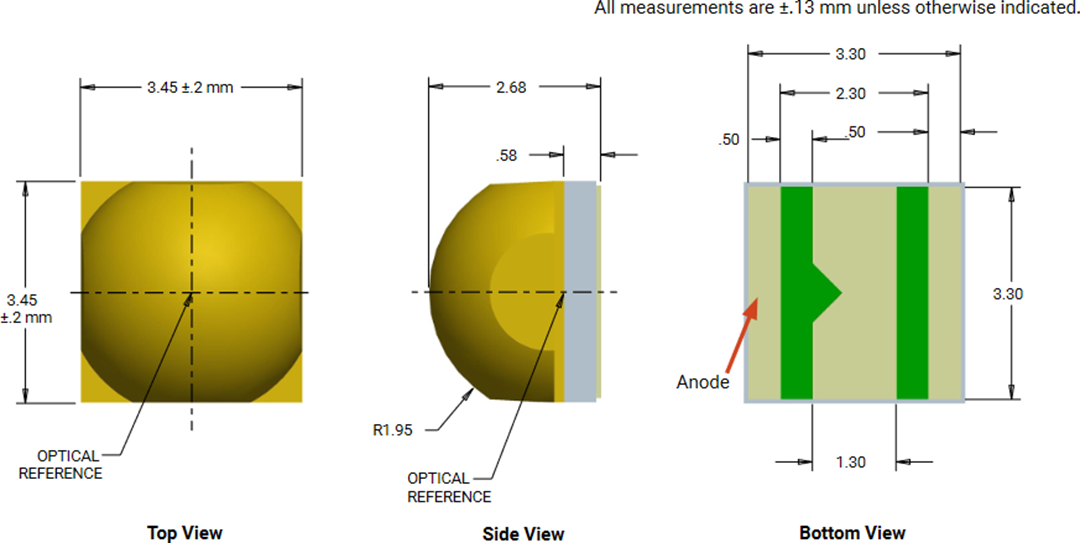

Package Dimensions
