Diodes Incorporated AP7350超低静态电流LDO
Diodes Inc. AP7350超低静态电流LDO具有高输出电压精度，包括一个电压基准、误差放大器、电流限制电路以及一个可将其打开/关闭的使能输入。 通过集成电阻网络，可提供固定输出电压型号。 AP7350适合用于低功耗手持设备、可穿戴设备以及其他电池供电设备。 该LDO具有超低静态电流，采用微型封装尺寸，适用于需要延长供电时间、直到更换新电池的设备。
特性
- Low VIN and Wide VIN Range 2.0V to 5.25V
- Guarantee Output Current 150mA
- Output Voltage Range 1.2V to 3.3V and 4.5V, Future Product
- Quiescent Current as Low as 0.25μA
- Typical Standby Current 0.02μA
- ESD Protection Exceeds JESD 22
- Exceeds 4000-V Human Body Model (A114)
- Exceeds 400-V Machine Model (A115)
- Latch-Up Exceeds 400mA per JESD 78, Class I
- VOUT Accuracy ±1%
- Totally Lead-Free and and Fully RoHS Compliant
- Halogen and Antimony Free "Green" Device
应用
- Wearable Electronics
- Sensor Module for Internet-of-Things (IoT)
- Wireless Communication Module
- Battery-Operated Device
- Camera
- Image Sensor

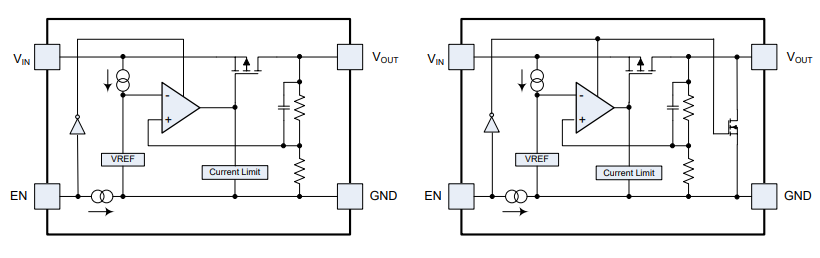

Functional Block Diagram
