Diodes Incorporated US3M SMD超快整流器
Diodes Incorporated US3M SMD超快整流器是一款采用SMC封装的玻璃钝化整流器。 玻璃钝化压模构造可提供高可靠性，非常适合用于电源和照明镇流器。 US3M整流器具有高电流能力、超快恢复时间和高效率。 该整流器的工作参数为1000VRRM （峰值重复反向电压）、 3A IO （平均整流输出电流）、 1.8Vf （正向电压）和10µA IR（漏 电流）。
The US3M SMD ultra-fast rectifiers feature case material of molded plastic. The UL flammability classification rating is 94V-0 and MSL level 1 per J-STD-020D. This rectifier provides terminals with lead-free plating (matte tin finish), solderable per MIL-STD-202 (Method 208). The terminals are of cathode band/ cathode notch polarity.
特性
- Glass passivated die construction
- High current capability
- Ultra-fast recovery time for high efficiency
- Maximum operating junction temperature of 175ºC
- Lead, Halogen, and Antimony free Green device
- RoHS compliant
应用
- Power supplies
- Lighting ballasts

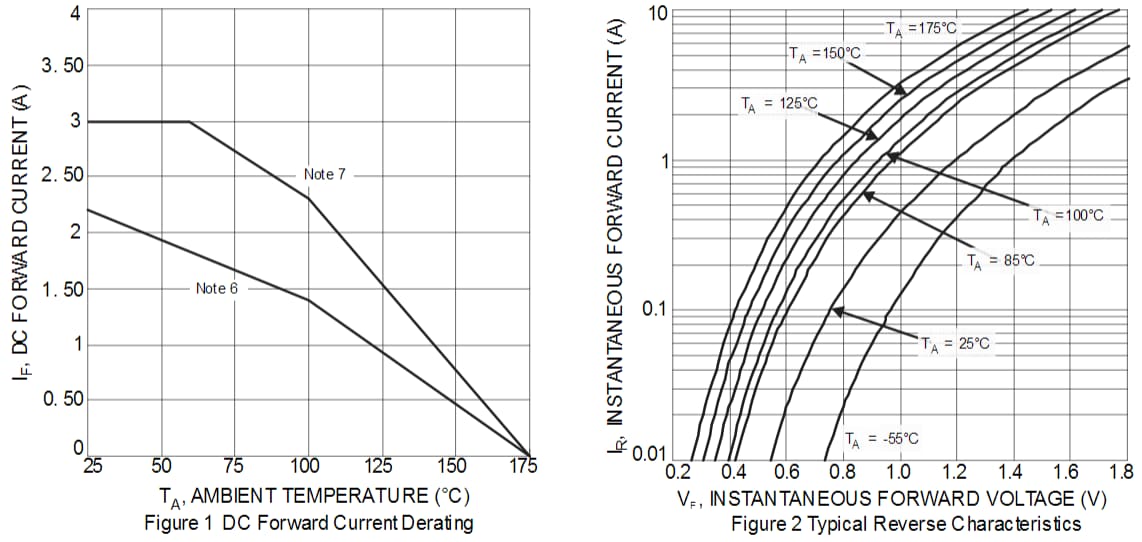

Electrical Characteristics
