Infineon Technologies AURIX 32位TriCore微控制器

Infineon Technologies AURIX^™ 32位TriCore^™微控制器设计用于满足汽车行业在性能和安全性方面的苛刻要求。AURIX MCU采用多达三个独立的32位TriCore CPU，为各种汽车应用提供了理想的平台。其中包括控制内燃机、电动和混合动力车辆、变速箱控制单元、底盘域、制动系统、电动助力转向系统、安全气囊、连接和高级辅助驾驶系统，可顺应自动驾驶、清洁和联网汽车的发展趋势。AURIX TriCore产品还提供了工业、CAV和运输行业所需的多功能性，在优化的电机控制应用和信号处理领域具有突出表现。广泛的产品组合使工程师可以从各种存储器、外设、频率、温度和封装选项中进行选择，且所有选项在各代产品间具有高度兼容性。

Discover the power of the 32-bit AURIX TriCore microcontroller family, featuring embedded safety and security features that make this platform ideally suited to a wide range of automotive and industrial applications. AURIX TriCore microcontrollers unite the elements of a RISC processor core, a microcontroller, and a DSP in one single MCU design. MCUs based on the TriCore architecture are trusted by engineers and designed for a wide variety of automotive applications.

AURIX TC2x - Up to 3x Tricore 1.6 300MHz, ISO 26262 ASIL-D, up to 8MB Flash, HSM, ETH, LockStep, CAN FD, AEC-Q1100 Grade 0 (T_a +150°C)

AURIX TC3x - Up to 6x Tricore 1.6 300MHz, ISO 26262 ASIL-D, up to 16MB Flash HSM, GETH, LockStep, CAN FD, AEC-Q100 Grade 0 (T_a +150°C)

AURIX TC4x - Up to 6x Tricore 1.8 500MHz, up to 24MB Flash, ISO 26262 ASIL-O, Lockstep cores, PPU accelerator, CSRM security, 20x CAN-FD + 4x CAN-XL, 4x 10/100 Mb Ethernet, PCIe

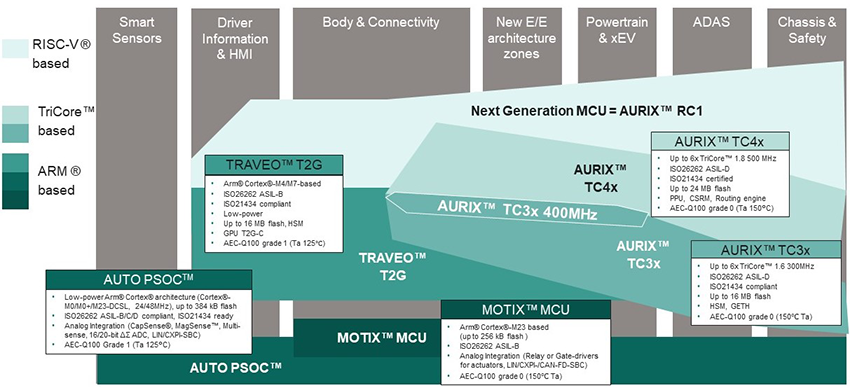

图表 - Infineon Technologies AURIX 32位TriCore微控制器

特性

兼容性和可扩展性
较低系统成本
行业基准系统性能
简单易用

产品多样
获得汽车标准认证
符合ISO 26262功能安全标准
用于实现较高安防性能的AURIX硬件安全模块 (HSM)

应用

动力传动系统
- 发动机管理系统 (EMS)
- 汽油直喷
- 柴油直喷
- 混合动力 (HEV) 和电动汽车 (EV)
- 电池管理
辅助驾驶系统
- 雷达系统
- 摄像系统
- 激光
- 红外

安全：有源和无源
- 约束系统，例如：安全气囊
- 制动系统
- 电动助力转向 (EPS)
- 安全域控制和传感器融合系统
- 悬挂控制
车身
- 车身域控制器
- 网关
- 高级车身应用

文档

AURIX 32位微控制器 - 产品手册

视频

框图

封装可扩展性

Design Resources - AURIX™ DRIVECORE

Infineon’s DRIVECORE is a scalable software bundle portfolio designed to streamline and accelerate software development. The software simplifies the development process and reduces migration efforts, all while minimizing commercial complexities and optimizing supplier management. Experience a smoother and more efficient pathway to innovation with DRIVECORE.

Key features and benefits
• Pre-integrated software bundles - streamlined development process with pre-integrated Infineon and partner software and tooling, designed to reduce complexity and accelerate innovation
• Reduce commercial complexity - simplify supplier management and reduce commercial complexity
• Risk-free evaluation - 3-month free evaluation period for all components

Learn More
