Kingbright Surface Mount LED Lamps

Kingbright Surface Mount LED Lamps are available in five colors and three shades of white--green, blue, super bright orange, hyper red, super bright yellow, cool white, neutral white, and warm white. The Kingbright Surface Mount LED Lamps in color are source color devices made with AlGaInP on GaAs substrate Light Emitting Diodes. The LEDs in shade of white are made with InGaN Light Emitting Diodes. All eight LED types have low power consumption and are RoHS compliant.

Features

  • 2.2mm x 1.4mm, 1.3mm high
  • Low power consumption
  • Available on tape and reel
  • Package: 2000pcs / reel
  • Moisture sensitivity level: level 3
  • RoHS compliant
  • Lens Type: Water Clear
  • Operating Current: 30mA
  • Operating Temperature: -40⁰C to +85⁰C
  • Viewing Angle: 120⁰

Applications

  • Backlight
  • Status indicator
  • Home and smart appliances
  • Wearable and portable devices
  • Healthcare applications

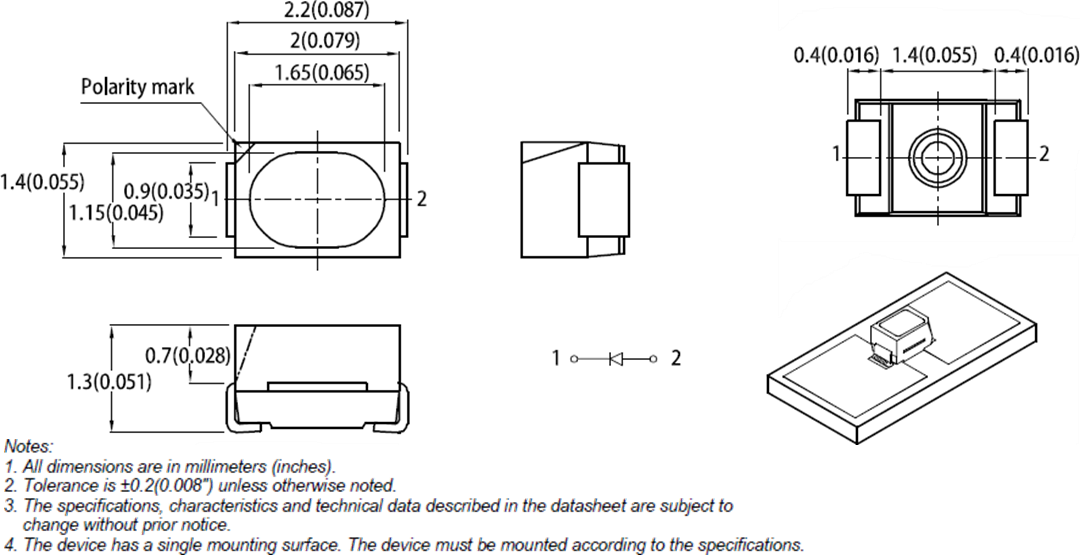

Package Outline

Mechanical Drawing - Kingbright Surface Mount LED Lamps
View Results ( 5 ) Page
物料编号 数据表 照明颜色 波长/色温 光强度 Vf - 正向电压
AA2214QBS/D AA2214QBS/D 数据表 Blue 470 nm 150 mcd 4 V
AA2214CGSK AA2214CGSK 数据表 Green 570 nm 100 mcd 2.5 V
AA2214SURSK AA2214SURSK 数据表 Red 630 nm 400 mcd 2.5 V
AA2214SESK AA2214SESK 数据表 Orange 601 nm 450 mcd 2.5 V
AA2214SYSK AA2214SYSK 数据表 Yellow 590 nm 250 mcd 2.5 V
发布日期: 2011-05-04 | 更新日期: 2022-03-11
