KYOCERA AVX CAN BUS Automotive Varistors

KYOCERA AVX CAN BUS Automotive Varistors are zinc oxide (ZnO) based ceramic semiconductor devices with nonlinear voltage-current characteristics (bidirectional). These varistors are similar to back-to-back Zener diodes and an EMC capacitor in parallel. KYOCERA AVX CAN0005 CAN BUS Automotive Varistors have the added advantage of greater current and energy handling capabilities as well as EMI/RFI attenuation. These devices are fabricated by a ceramic sintering process that yields a structure of conductive ZnO grains surrounded by electrically insulating barriers, creating varistor-like behavior.

The varistors provide a large in-rush current capability, low capacitance to minimize signal distortion, fast turn-on times to conservatively clamp the energy before its maximum, and off-state EMI filtering through their bulk capacitance. These features coupled with an extremely low FIT rate and excellent process capability make the KYOCERA AVX CAN BUS Automotive Varistors an ideal device for automotive or general circuit protection.

Features

  • Compact footprint
  • High ESD capability (25kV)
  • High inrush current (8x20µs)
  • EMI-RFI attenuation
  • -55°C to +125°C operating temperature range
  • ≤18VDC working voltage
  • Low capacitance / low insertion loss
  • Fast response time
  • High reliability, 0.1 FIT
  • AEC-Q200 qualified

Applications

  • Communication Bus - CAN Bus, FLexRay, and more
  • General I/O protocols
  • Keyboard interfaces
  • Datalines
  • Sensors
  • Capacitance sensitive applications

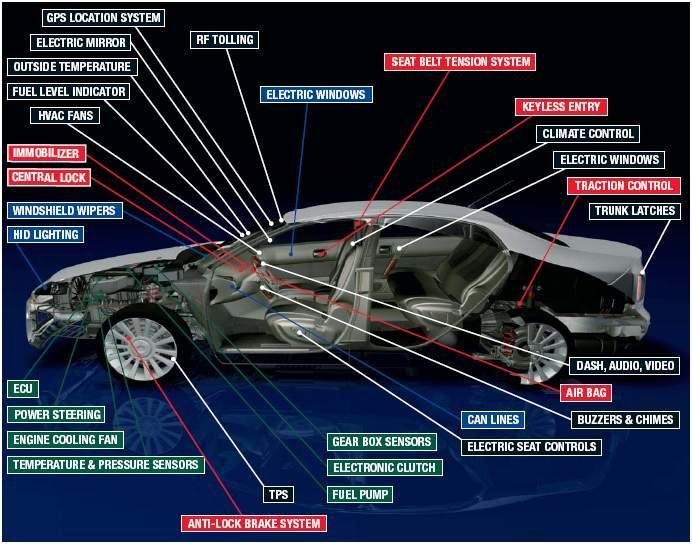

Circuit Protection Automotive Uses

Chart - KYOCERA AVX CAN BUS Automotive Varistors

Related Products

KYOCERA AVX TransGuard®多层压敏电阻器

多种SMT元器件，用于双向过压保护，具有EMI/RFI衰减功能。

Learn More关于KYOCERA AVX TransGuard®多层压敏电阻器 View Products与KYOCERA AVX TransGuard®多层压敏电阻器相关
View Results ( 14 ) Page
物料编号 数据表 变阻器电压 钳位电压 峰值浪涌电流 浪涌能量额定值
CANAT01RP CANAT01RP 数据表 120 V 22 V 4 A 15 mJ
CAN0001DP CAN0001DP 数据表 120 V 225 V 4 A 15 mJ
FLX0005WP FLX0005WP 数据表 26 V 45 V 4 A 20 mJ
CAN0001RP CAN0001RP 数据表 120 V 225 V 4 A 15 mJ
CAN0004DP CAN0004DP 数据表 100 V 180 V 4 A 15 mJ
CANAT01DP CANAT01DP 数据表 120 V 67 V 4 A 15 mJ
CANAT02DP CANAT02DP 数据表 70 V 22 V 4 A 15 mJ
CAN0001TP CAN0001TP 数据表 120 V 225 V 4 A 15 mJ
CAN0002DP CAN0002DP 数据表 70 V 145 V 4 A 15 mJ
CAN0002RP CAN0002RP 数据表 70 V 145 V 4 A 15 mJ
发布日期: 2012-02-01 | 更新日期: 2022-03-11
