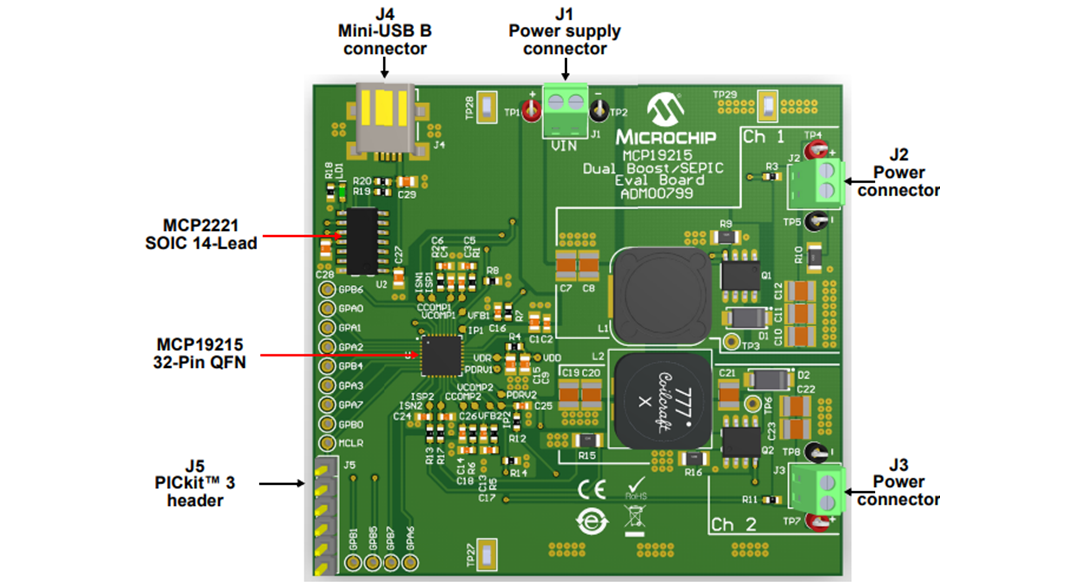

Microchip Technology MCP19215双通道升压/SEPIC评估板

Microchip Technology MCP19215双通道升压/SEPIC评估板是一款双通道控制器板，用于评估MCP19215 PWM控制器。该评估板可在宽负载范围和输入电压下演示升压和SEPIC拓扑结构中MCP19215的功能。几乎所有的操作和控制系统参数的编程都可以通过板载PIC控制器进行管理。MCP19215板具有300kHz开关频率，可通过I²C通信进行状态报告，输入电压范围为8V至15V。该评估板具有20V的默认输出电压（两个通道）和0.2A的默认输出电流。MCP19215板套件设有USB A转mini-USB Type B电缆。

The Microchip Technology MCP19215 Evaluation Board (ADM00799) demonstrates the function of the MCP19215 during Boost and SEPIC topologies over a wide load range and input voltage. Almost all programming of the operational and control system parameters can be managed through the onboard PIC controller. The MCP19215 Evaluation Board features a 300kHz switching frequency, a status report via I²C communication, and an 8V to 15V input voltage range. This Evaluation Board comes with a default output voltage of 20V for both channels and a default output current of 0.2A. The MCP19215 Evaluation Board includes a USB A to mini-USB type B cable.
