Microchip Technology MCP6411 1MHz运算放大器
Microchip MCP6411 1MHz运算放大器是集成有EMI保护功能和轨到轨输入/输出的通用运算放大器，工作电压范围为1.7V至5.5V。 该款放大器的典型GBWP为1MHz，典型静态电流为50uA。 由于结合了以上特性，因此该器件支持电池供电和便携式应用。
The Microchip Technology MCP6411 Op Amp is available in SC-70 and SOT-23 packages for design flexibility.
特性
- Low 50µA quiescent current (typical)
- Low ±1.0mV input offset voltage (maximum)
- Enhanced EMI protection: EMIRR 90dB at 1.8GHz
- 1.7V to 5.5V supply voltage range
- 1MHz gain-bandwidth product (typical)
- Rail-to-rail input/output
- 0.5V/µs slew rate (typical)
- Unity gain stable
- No phase reversal
- Extended -40°C to +125°C operating temperature range
- Package options: SC70-5, SOT-23-5
应用
- Portable medical instruments
- Safety monitoring
- Battery-powered systems
- Remote sensing
- Supply current sensing
- Analog active filters

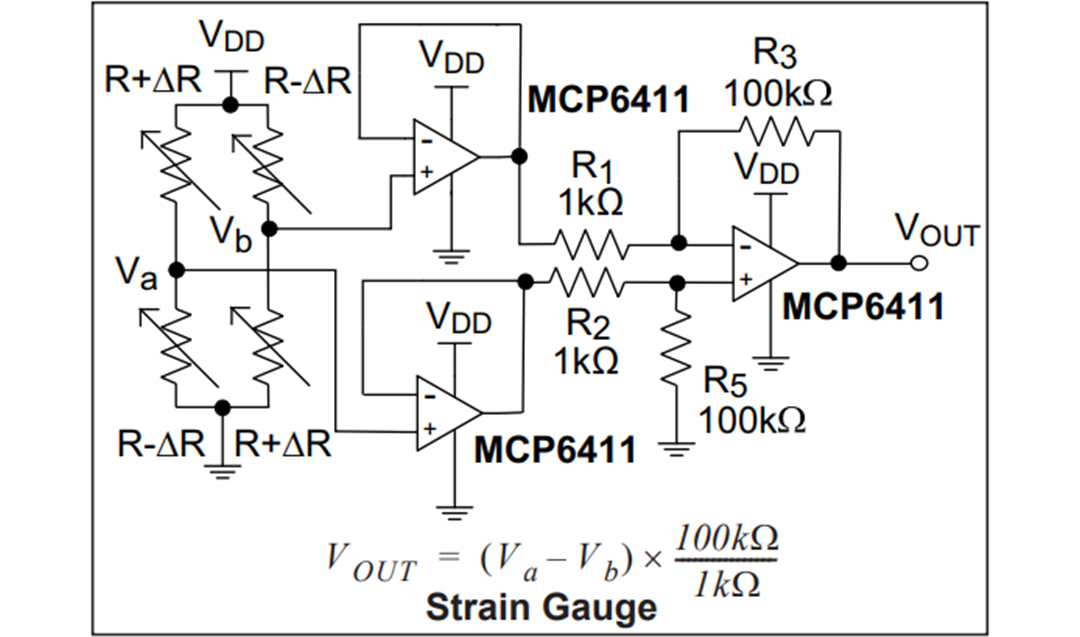

Typical Application
发布日期: 2017-07-07
| 更新日期: 2022-03-21
