Microchip Technology 16V低静态电流运放
这些Microchip Technology 16V运放可在3.5V-16V宽广的电源电压范围工作，且每个放大器仅使用135 μA的静态电流。MCP6H01/2的单位增益稳定，内置1.2MHz的增益带宽产品，具有轨到轨输出功能。MCP6H01/2系列提供单(MCP6H01)、双(MCP6H02)两种配置方式。Microchip Technology 16V运放的静态电流非常低，适用于医疗（例如便携式仪器、心压监测仪和血压监测仪）、汽车（例如接近传感器、温度传感器或流量传感器）和工业（例如电源中的高侧电流检测电路）市场等应用领域。 这些设备还可提供高达100dB的共模抑制比(CMRR)以及高达102dB的电源抑制比(PSRR)，从而提高噪声性能。MCP6H01/2的电流消耗低，封装精致小巧，是便携式应用的理想之选。
Microchip Technology 16V Op Amps with Low Quiescent Current are targeted for applications in the medical (e.g. portable instrumentation, heart- and blood-pressure monitors), automotive (e.g. proximity, temperature or flow sensors), and industrial (e.g. high-side current sensing in power supplies) markets. These devices also offer high Common Mode Rejection Ratio (CMRR) of 100dB and Power-Supply Rejection Ratio (PSRR) of 102dB for improved noise performance. Low current consumption combined with space-saving package offerings make the MCP6H01/2 ideal for portable applications as well.
特性
- Input Offset Voltage: ±0.7mV (typical)
- Quiescent Current: 135μA (typical)
- Common Mode Rejection Ratio: 100dB (typical)
- Power Supply Rejection Ratio: 102dB (typical)
- Rail-to-Rail Output
- Supply Voltage Range
- Single-Supply Operation: 3.5V to 16V
- Dual-Supply Operation: ±1.75V to ±8V
- Gain Bandwidth Product: 1.2MHz (typical)
- Slew Rate: 0.8V/μs (typical)
- Unity Gain Stable
- Extended Temperature Range: -40°C to +125°C
- No Phase Reversal
应用
- Automotive power electronics
- Industrial control equipment
- Battery powered systems
- Medical diagnostic instruments
Typical Application

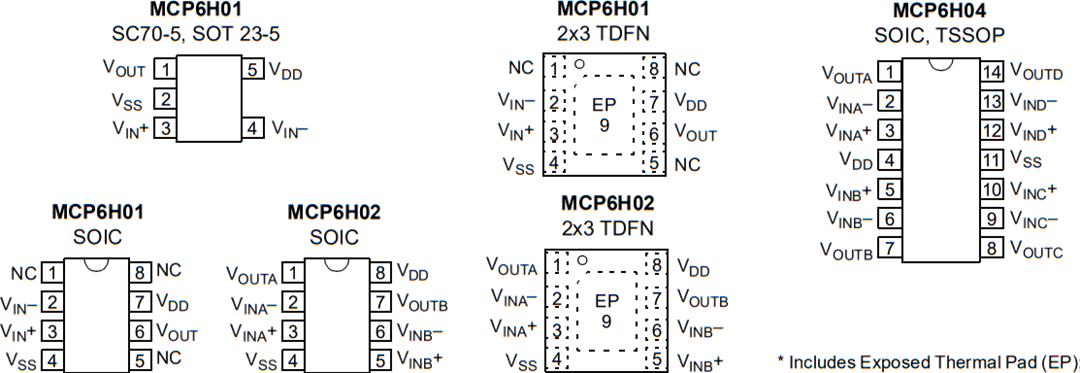

Package Options & Pinouts
