Microsemi / Microchip PD70224EVB开发工具
Microsemi/Microchip PD70224EVB开发工具评估基于PD70224和PD70210/A器件的PD应用的性能和运行情况。该板使用单个PD器件PD70210ILD来支持2/4对Cat5电缆的检测、分类和供电相位。PD70224EVB开发工具的工作电压范围是42V至57V。
特性
- Designed to support Data and Spare current using a single PD70210/A device
- Data and Power in RJ45 connector
- Output voltage connector
- Wall adapter connector (on PD70210A version)
- On board Power Good LED indicator (on PD70210 version)
- On board AT detected LED indicator
- On board 4P_AT detected LED indicator
- On board HD detected LED indicator
- On board 4P_HD detected LED indicator
- 0° to +70°C working temperature
- RoHS compliant

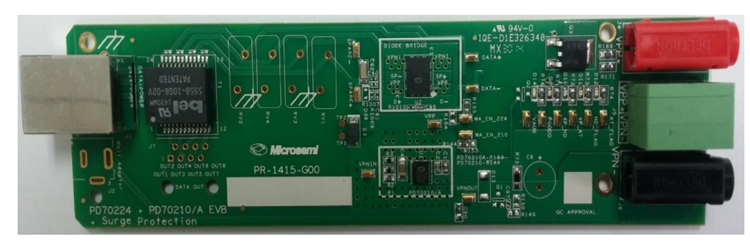

PD70224EVB概述

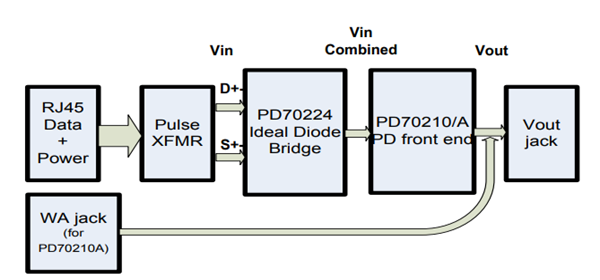

PD70224EVB框图
