Murata Power Solutions MEF1系列隔离型1W稳压单输出DC/DC转换器

Murata Power Solutions MEF1 系列隔离型 1W 稳压单输出直流/直流转换器能可提供<1% 的输出稳压，用于需要严格稳压的场合。单轨稳压输出使其成为功率传感器（如压力变送器、霍尔效应传感器及空气流量传感器）的理想选择。

特性

  • UL60950 recognized
  • Short circuit protection
  • Operation to zero load
  • Output regulation of <1%
  • Power density of 0.85W/cm3
  • Single isolated output
  • UL 94V-0 package material
  • Footprint from 1.17cm2
  • 1kVDC or 3kVDC isolation options
  • 3.3V, 5V, 12V, and 24V input
  • 3.3V and 5V output
  • SMD construction
  • Fully encapsulated with toroidal magnetics
  • Pin compatible with the NMF series
  • RoHS compliant

应用

  • Power sensors
    • Pressure transducers
    • Hall effect sensors
    • Mass air-flow sensors
  • Battery-powered systems
  • Process control systems
  • Distributed power systems
  • Industrial automation
  • Instrumentation and control
  • Telecommunications

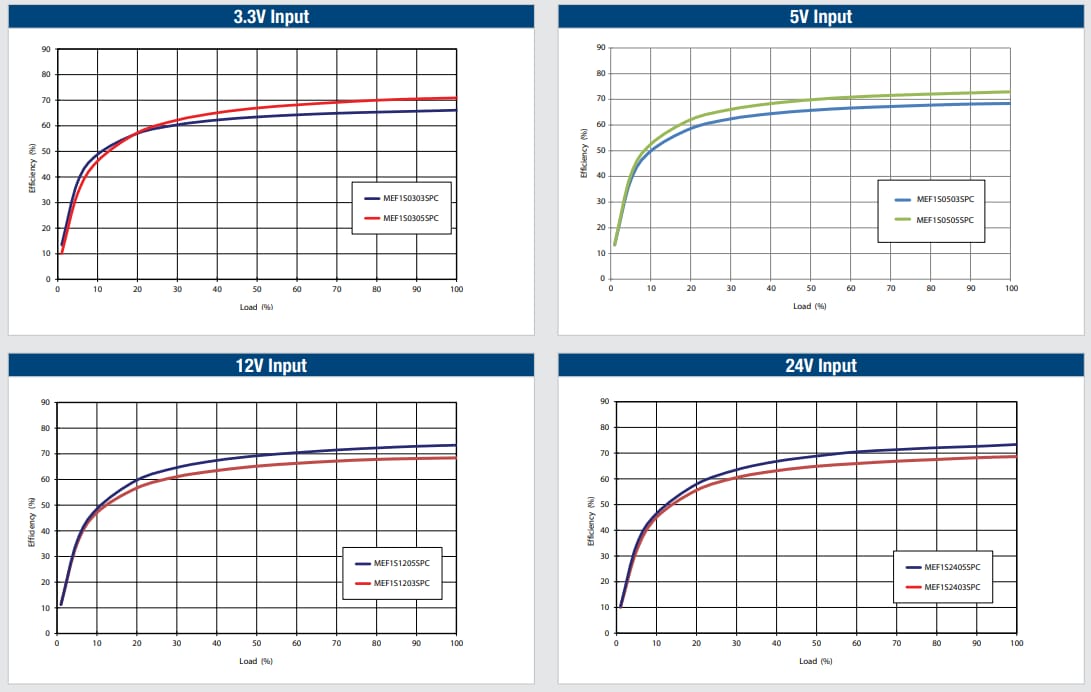

Efficiency vs Load

性能图表 - Murata Power Solutions MEF1系列隔离型1W稳压单输出DC/DC转换器

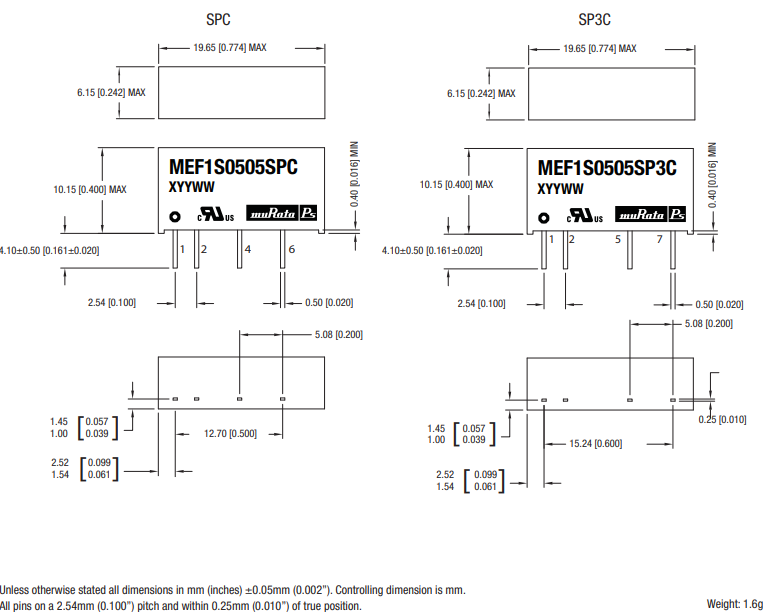

Mechanical Dimensions

机械图纸 - Murata Power Solutions MEF1系列隔离型1W稳压单输出DC/DC转换器
发布日期: 2014-01-03 | 更新日期: 2022-03-11
