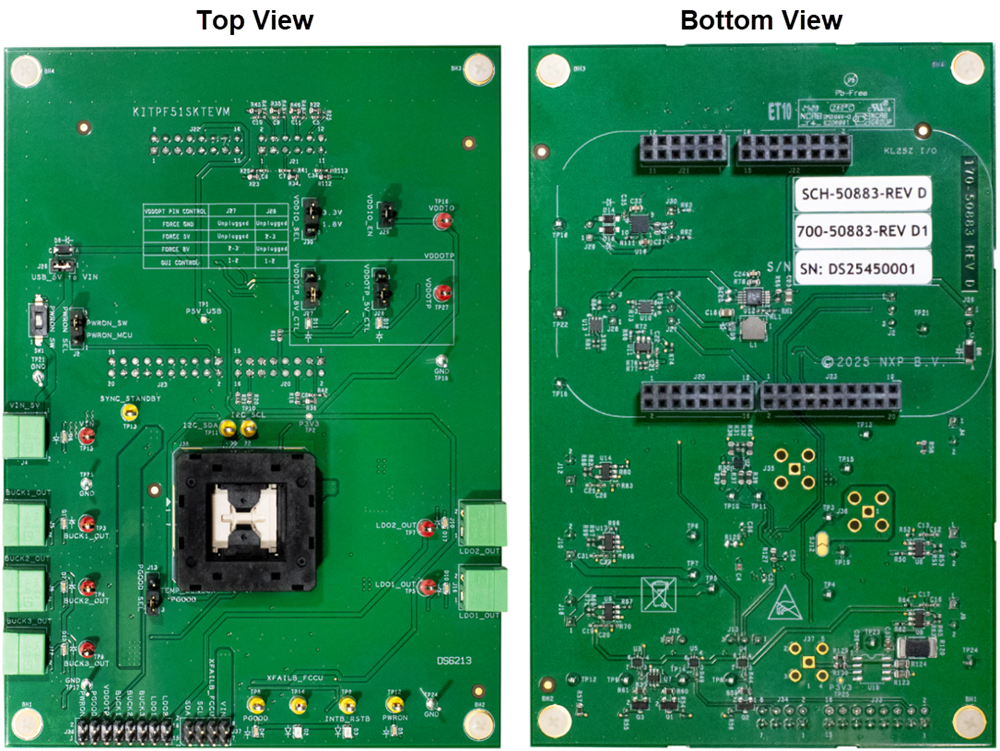

NXP Semiconductors KITPF51SKTEVM Evaluation Board

NXP Semiconductors KITPF51SKTEVM Evaluation Board enables easy evaluation and development of the PF51x3 power management IC family, designed for low-voltage automotive applications up to 5V. The user can operate the evaluation module in standalone mode or via its USB interface. The user can manage all I²C commands using NXP's intuitive GUI software.

The socketed board supports one-time programmable (OTP) programming per device. Debug mode also allows the user to test multiple configuration settings before final OTP programming.

Features

Connectivity
- FRDM-KL25Z board allows USB connection for easy connection to software GUI (I2C, IOs, Safety outputs, Debug, AMUX, regulators), USB connection for register access, debug mode, and programming
Power Management
- BUCK1: 0.5V to 3.3V, 3.5A (Single/Multi phase)
- BUCK2: 0.5V to 3.3V, 3.5A (Single/Multi phase)
- BUCK2: 0.5V to 3.3V, 3.5A (Single/Multi phase)
- LDO1: 0.75V to 3.3V, 0.2A
- LDO2: 0.75V to 3.3V, 0.5A

Components include LEDs that indicate signal or regulator status
Support
- Debug mode access
- OTP fuse programming
- Connectors allowing easy access to digital signals

Applications

Automotive
- Automotive high-performance computing
- Automotive radar solutions
- Two-wheeler digital connected cluster

Industrial
- Automotive and industrial vision systems
- eCockpit

Kit Contents

Assembled and tested evaluation board in an antistatic bag
An assembled and tested evaluation board and preprogrammed FRDM-KL25Z microcontroller board in an antistatic bag
