onsemi NST650 双匹配 PNP 晶体管
onsemi NST650 双匹配 PNP 晶体管采用 SOT-363 超小型封装，非常适合用于便携式产品。 该晶体管设计用于提供一对全部参数的高度匹配器件。 这种设计无需昂贵的微调。 NST650 晶体管电流增益匹配至 10%，基极-发射极电压匹配至 ≤2mV。 该器件特别适合用于电流镜、混频器、检测器和限制器以及差分、感测和均衡放大器。
NST650 transistors offer current gain matching to 10% and a base-emitter voltage matched to ≤2mV. The devices are especially well-suited for current mirrors, mixers, detectors and limiters, and differential, sense, and balanced amplifiers.
特性
- Current gain matching to 10%
- Base-emitter voltage matched to 2mV
- Drop-in replacement for standard device
- NSV prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable
- Lead-free, halogen-free/BFR-free, and RoHS compliant
应用
- Current mirrors
- Differential, sense, and balanced amplifiers
- Mixers
- Detectors and limiters

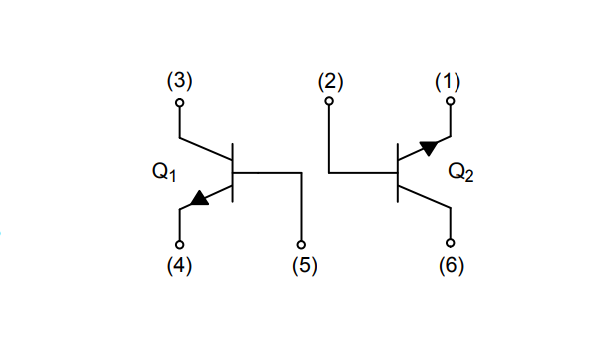

Schematic
发布日期: 2016-07-19
| 更新日期: 2022-03-11
