PANJIT Automotive & High-Reliability E-Type TVS

PANJIT Automotive and High-Reliability E-Type Transient Voltage Suppressors (TVS) incorporate Epitaxial (EPI) planar wafer process technology with high surge, low V_C, and ultra-low I_R characteristics. These products feature oxide planar chip junction, high-temperature soldering, and excellent clamping capabilities in ultra-thin profile packages for space-constrained utilization. These products are available in 150W to 600W of power range and use four low-profile package types, such as SOD-123FL, SOD-123HE, SOD-323HE, and SMAF-C. These E-Type TVS devices meet the AEC-Q101 standards and are suitable for automotive applications as well as other applications including consumer electronics, wearable devices, and household appliances.

Features

High surge and low profile packages
Ultra-low reverse current
Excellent clamping capability
EPI (Epitaxial) planar technology

Oxide planar chip junction
AEC-Q101 qualified
High-temperature soldering
Lead-free in compliance with EU RoHS 2.0

Applications

Automotive
Computers
Laptops
Tablets

Smartphones
Wearables
Consumer electronics

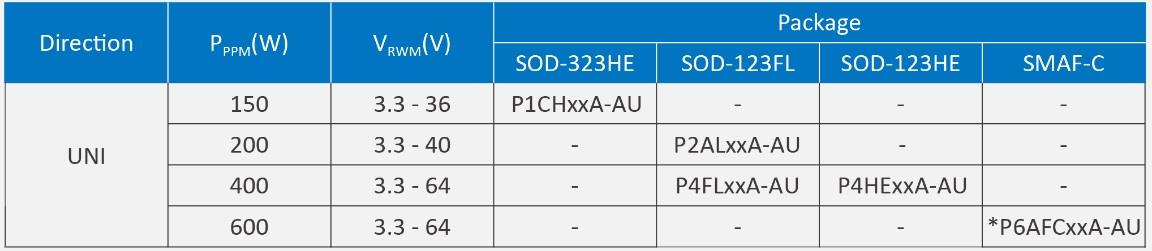

E-type Family

Space-efficient Dimension Designs

Chart - PANJIT Automotive & High-Reliability E-Type TVS

View Results ( 274 ) Page

物料编号	极性	峰值脉冲功耗 (Pppm)	钳位电压	击穿电压	Ipp - 峰值脉冲电流
P4FL15A_R1_00001	Unidirectional	400 W	24.4 V	18.5 V	16.4 A
P4FL16A-AU_R1_000A1	Unidirectional	400 W	26 V	19.7 V	15.4 A
P4FL3.3A_R1_00001		400 W	8.5 V	6 V	47 A
P1CH18A_R1_00001	Unidirectional	150 W	29.2 V	22.1 V	5.1 A
P1CH26A-AU_R1_000A1	Unidirectional	150 W	42.1 V	31.9 V	3.6 A
P1CH3.3A-AU_R1_000A1	Unidirectional	150 W	8.5 V	6 V	17.6 A
P1CH7.0A-AU_R1_000A1	Unidirectional	150 W	12 V	8.6 V	12.5 A
P4FL20A-AU_R1_000A1	Unidirectional	400 W	32.4 V	24.5 V	12.3 A
P1CH10A-AU_R1_000A1	Unidirectional	150 W	17 V	12.3 V	8.8 A
P1CH11A-AU_R1_000A1	Unidirectional	150 W	18.2 V	13.5 V	8.2 A

发布日期: 2021-03-12 | 更新日期: 2022-03-11
