PANJIT MSR2DAFC Hyper-Fast Recovery Rectifier
PANJIT MSR2DAFC Hyper-Fast Recovery Rectifier is a surface-mount rectifier designed with Trr under 20ns for efficient rectification in electronic applications. This rectifier reduces switching losses and achieves higher frequencies in electronic circuits for improved efficiency for DC-DC converters. The MSR2DAFC rectifier offers strong stability, high reliability, and minimal leakage current. This rectifier features a 200V maximum recurrent peak reverse voltage, 140V maximum RMS voltage, and 200V maximum DC blocking voltage.
The MSR2DAFC rectifier operates with a -55°C to 175°C junction temperature range. This rectifier is lead-free in compliance with EU RoHS 2.0 and meets green molding compound as per IEC61249 standard. The MSR2DAFC rectifier is available in an SMAF-C package and is ideal for automated placement.
Features
- Superfast recovery times-epitaxial construction
- Low forward voltage and high current capability
- Low reverse current
- Lead free in compliance with EU RoHS 2.0
- Ideal for automated placement
- Green molding compound as per IEC 61249 standard
- Available in an SMAF-C package
- Plastic package includes underwriters laboratory flammability classification 94V-0
Specifications
- -55°C to 175°C operating junction temperature range
- 200V maximum repetitive peak reverse voltage
- 140V maximum RMS voltage
- 200V maximum DC blocking voltage
- 2A maximum average forward current

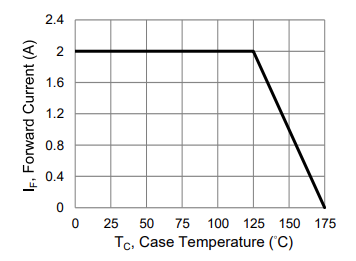

Forward Current Derating Curve
