Pulse Electronics Automotive Ethernet Common Mode Chokes
Pulse Electronics Automotive Ethernet Common Mode Chokes are an AEC-Q200-qualified common mode choke family that supports 10/100 and 1G speeds. These Ethernet common mode chokes are designed to meet IEEE 802.3bw standards and are qualified at Marvell, Broadcom, and Valens, maintaining performance at temperatures ranging from -40°C to +125°C. This automotive solution is geared for high reliability and high-volume manufacturing. Pulse Electronics Automotive Ethernet Common Mode Chokes are ideal for vehicular applications such as onboard diagnostics, infotainment, gateways, and 360° camera systems.
Features
- Single pair Ethernet solution reduces the volume of wiring in an automobile.
- Leverages existing technologies
- AEC-Q200 Qualified
- Meets "IATF16949 Factories" standards
- Supports 100BASE-T1 and 1000BASE-T1 speeds while meeting IEEE standards
- -40°C to +125°C operating temperature range
- 100mA max DC current
- 4.2Ω to 5Ω max DC resistance range
- 120uH to 160uH inductance range
- High reliability
- Supports high-volume manufacturing
- Qualified at Marvell, Broadcom, Valens
Applications
- On-board diagnostics
- Infotainment
- Gateways
- 360° camera systems
- Body controls
Featured Products
Pulse Electronics 10xBase-T1 Automotive Ethernet Common Mode Chokes
AEC-Q200 Ethernet common mode chokes are designed to meet IEEE 802.3bw or IEEE802.3bp requirements.
Pulse Electronics 1000Base-T1 Automotive Ethernet Common Mode Chokes
AEC-Q200 Ethernet common mode chokes designed to meet IEEE 802.3bw/bp and support 1G speeds.
Related Products
Pulse Electronics ADAS汽车解决方案
汽车解决方案，包括功率电感器、铁氧体磁珠、芯片电感器和小型模制电感器。
Pulse Electronics Automotive Communications Solutions
AEC-Q200 qualified Ethernet Magnetics and Common Mode Chokes for automotive communications.
Pulse Electronics BMS隔离变压器和共模扼流圈
适用于小型到大型电池组系统的全系列隔离变压器和共模扼流圈。

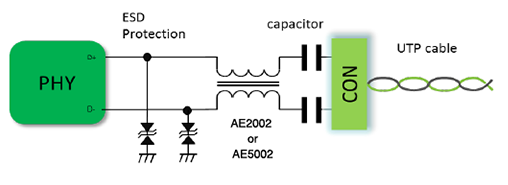

Schematic
