ROHM Semiconductor RN789FM PIN Diode
ROHM Semiconductor RN789FM PIN Diode is a small mold package, suitable for an auto-gain control circuit and an antenna amplifier/attenuator. This diode offers a reverse voltage rating of up to 100V and can handle forward current up to 50mA. The RN789FM PIN diode comes in a SOT-323 package and features high reliability, low rF, and low Ct. This diode supports high-frequency forward resistance of up to 4Ω, and a maximum capacitance between terminals of 0.4pF. The RN789FM PIN diode is RoHS-compliant and offers a storage temperature range of -55°C to +150°C.
Features
- High reliability
- Small mold type
- Low rF
- Low Ct
- SOT-323 package
- RoHS compliant
Applications
- Auto gain control circuit
- Antenna amplifier/attenuator
Specifications
- Characteristic at 25°C Ta:
- 1V maximum forward voltage at 10mA IF
- 10µA maximum reverse current at 100V VR
- 0.4pF maximum capacitance between terminals at 35V VR and f=1MHz
- 4Ω maximum high frequency forward resistance at 10mA IF and f=100MHz
- Absolute Maximum Rating at 25°C Ta:
- 100V reverse voltage (VR)
- 50mA forward current (IF)
- 150°C junction temperature
- -55°C to +150°C storage temperature

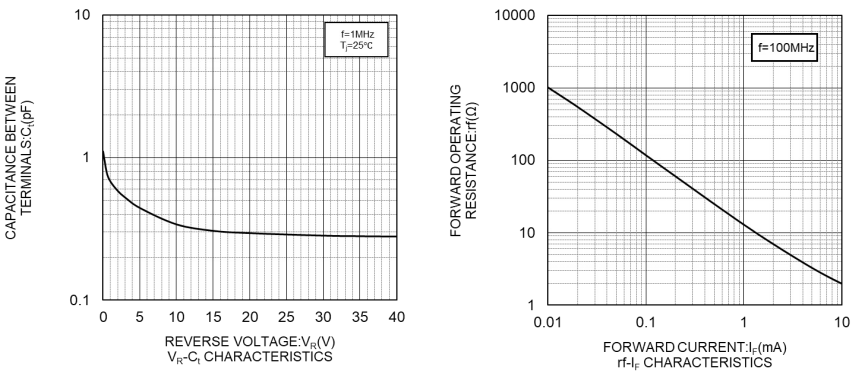

Characteristic Curves
Inner Circuit
Dimensions
Related Diode
