ScioSense UFC ST Nucleo Shields Expansion Boards

ScioSense UFC ST Nucleo Shields Expansion Boards can easily be combined with ST development kits and ScioSense evaluation kits. The boards feature two rows of connectors that fit into the ST Nucleo boards. An additional connector is available to use with the PICOPROG interface. Shields are available for TDC-GP30YA-F01 (with flow firmware), AS6031, and AS6040.

Features

  • Can easily be combined with the ST development kits and the ScioSense evaluation kits in combination with the UFC Evaluation Software package
  • The boards have two rows of connectors that fit into the ST Nucleo boards and an additional connector to the PICOPROG interface
  • Shields are available for TDC-GP30YA-F01 (with flow firmware), AS6031, and AS6040

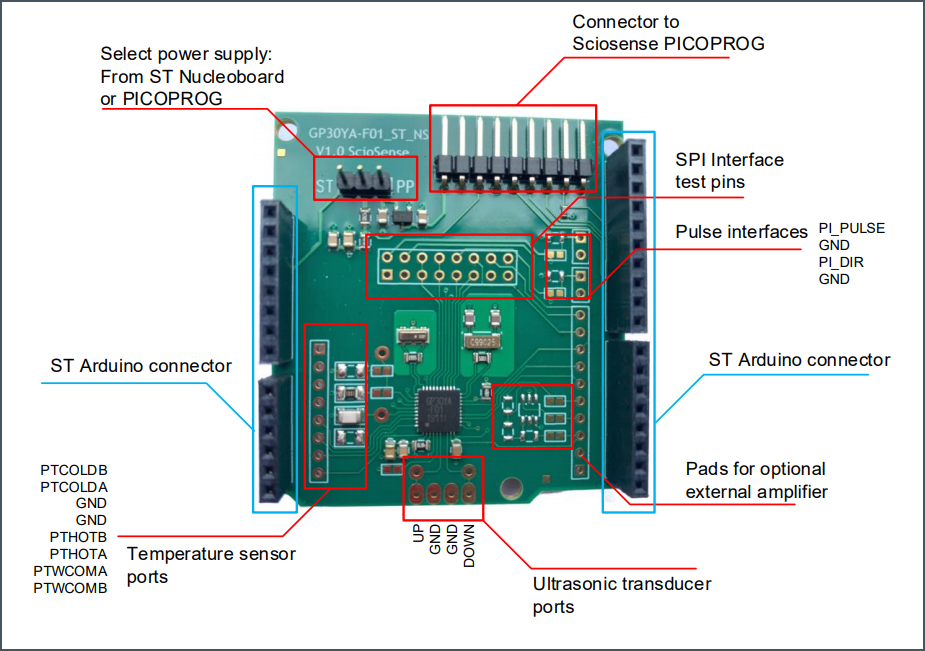

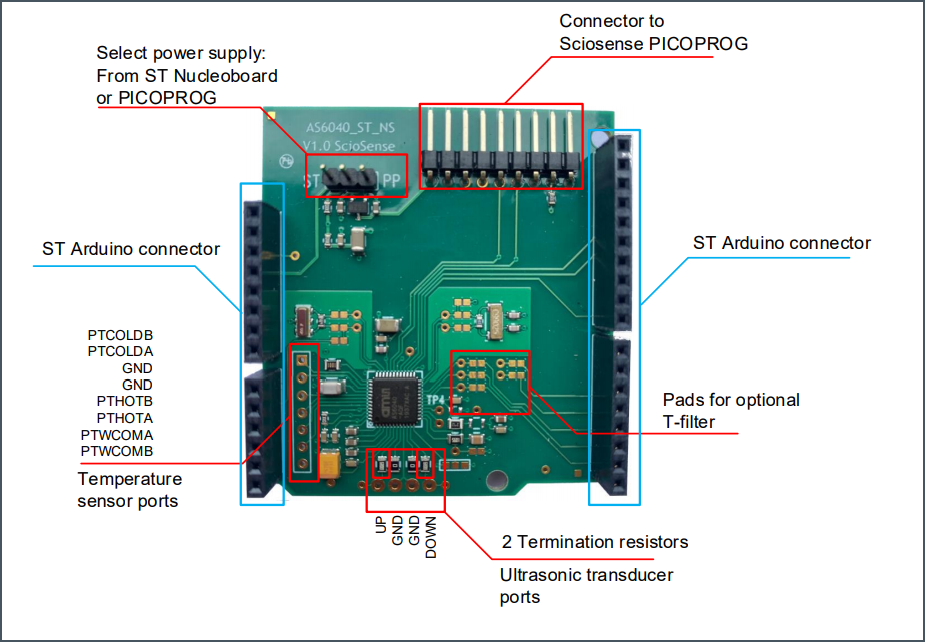

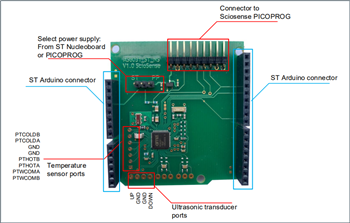

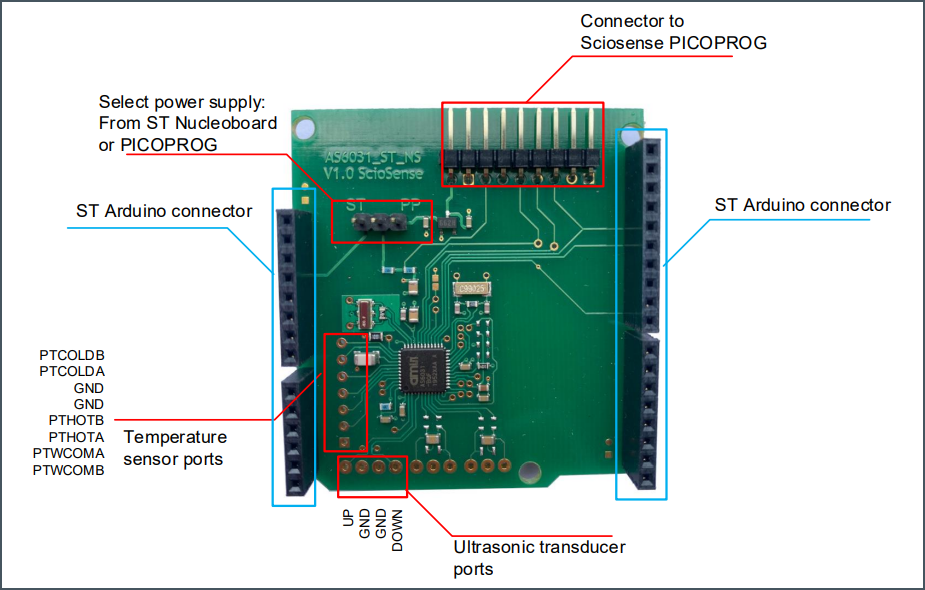

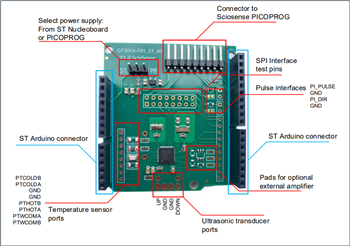

Board Layout

ScioSense UFC ST Nucleo Shields Expansion Boards
ScioSense UFC ST Nucleo Shields Expansion Boards
ScioSense UFC ST Nucleo Shields Expansion Boards

Related Products

ScioSense AS6031 Development Tools

Used for quick and easy start-up and evaluation of the AS6031 ultrasonic flow converter (UFC).

Learn More关于ScioSense AS6031 Development Tools View Products与ScioSense AS6031 Development Tools相关

ScioSense AS6031 SoC for Ultrasonic Flow Meters

Ultrasonic flow converter for the next generations of ultrasonic water and heat meters.

Learn More关于ScioSense AS6031 SoC for Ultrasonic Flow Meters View Products与ScioSense AS6031 SoC for Ultrasonic Flow Meters相关

ScioSense AS6040 Development Tools

Used for quick and easy start-up and evaluation of the AS6040 ultrasonic flow converter (UFC).

Learn More关于ScioSense AS6040 Development Tools View Products与ScioSense AS6040 Development Tools相关

ScioSense AS6040适用于燃气表的超声波流量计

为燃气表设计的解决方案，同时也适用于水表。

Learn More关于ScioSense AS6040适用于燃气表的超声波流量计 View Products与ScioSense AS6040适用于燃气表的超声波流量计相关

ScioSense GP30 Standard Board

Used for quick start-up and evaluation of the TDC-GP30 and TDC-GP30-F01 ultrasonic flow converters.

Learn More关于ScioSense GP30 Standard Board View Products与ScioSense GP30 Standard Board相关
View Results ( 10 ) Page
物料编号 数据表 描述
AS6031-BQFM AS6031-BQFM 数据表 传感器接口 Ultrasonic flow converter with PGA & CPU
AS6031-QF_DK AS6031-QF_DK 数据表 多功能传感器开发工具 AS6031 Development kit
AS6031-QF_DK_RB AS6031-QF_DK_RB 数据表 多功能传感器开发工具 AS6031 Reference board
AS6040-QF_DK_RB AS6040-QF_DK_RB 数据表 多功能传感器开发工具 AS6040 Reference board
GP30YA-F01_ST_NS V1.0 GP30YA-F01_ST_NS V1.0 数据表 多功能传感器开发工具 TDC-GP30YA-F01 Nucleo shield
AS6040-BQFM AS6040-BQFM 数据表 传感器接口 Ultrasonic flow converter with HV AFE & CPU
AS6040-QF_DK AS6040-QF_DK 数据表 多功能传感器开发工具 AS6040 Development kit
AS6031_ST_NS V1.0 AS6031_ST_NS V1.0 数据表 多功能传感器开发工具 AS6031 Nucleo shield
AS6040_ST_NS V1.0 AS6040_ST_NS V1.0 数据表 多功能传感器开发工具 AS6040 Nucleo shield
TDC-GP30YA-F01 3K TDC-GP30YA-F01 3K 数据表 传感器接口 Ultrasonic flow converter with CPU & flow firmware in QFN40
