Switchcraft EH Mini-USB Feedthru Connectors
Switchcraft EH Mini-USB Feedthru Connectors add a mini-USB option to the traditional EH Panel Mount connectors. EH products feature audio, video, and data connectors built into standard panel-mount XLR housings. The single-port Switchcraft EH Mini-USB Feedthru Connectors feature a black housing with copper alloy and gold-plated contacts.
Specifications
- 5 contacts
- Singe port
- Straight panel mount style
- Thermoplastic, black insulator
- Copper alloy, gold-plated contacts
- Thermoplastic, black EH housing
- Copper alloy, nickel-plated shell

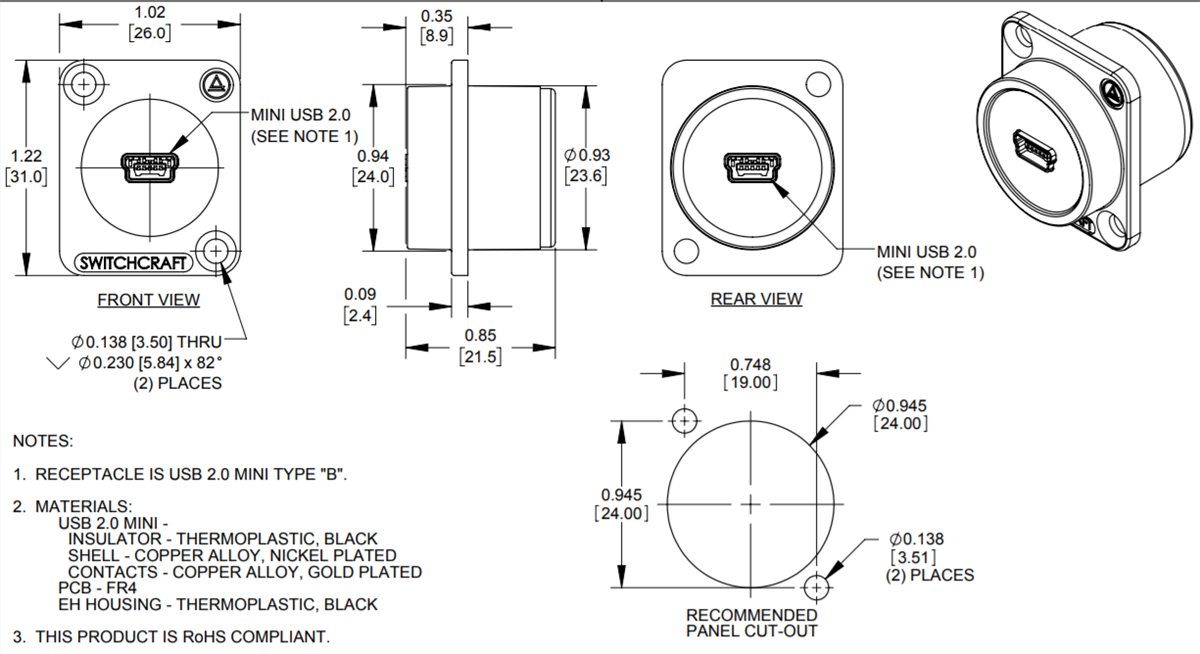

Dimensions
View Results ( 16 ) Page
| 物料编号 | 数据表 | 产品 | 标准 | 触点电镀 | 绝缘体颜色 |
|---|---|---|---|---|---|
| EHUSBBABXPKG |  |
USB Adapters | Chrome | Black | |
| EHUSBMNMN | |
Mini USB Type B Connectors | USB 2.0 | Gold | Black |
| EHUSBMNMNPKG | |
Mini USB Type B Connectors | USB 2.0 | Gold | Black |
| EHUSBABBX | |
USB Adapters | Black | ||
| EHUSBABX | |
USB Adapters | Nickel | Black | |
| EHUSBBAX | |
USB Adapters | Nickel | Nickel | |
| EHUSBBAXPKG | |
USB Adapters | Nickel | Nickel | |
| EHUSBBABX | |
USB Adapters | Black | ||
| EHUSBABXPKG | |
USB Adapters | Nickel | ||
| EHUSB3ACAB | |
USB Adapters | USB 3.0 | Gold | Black |
发布日期: 2018-10-18
| 更新日期: 2023-01-10
