Taiwan Semiconductor TS432 Adjustable Precision Shunt Regulators

Taiwan Semiconductor TS432 Adjustable Precision Shunt Regulators provide a typical output impedance of 0.05Ω and feature specified thermal stability. The three-terminal adjustable TS432 shunt regulator supplies an output voltage that can be set to any value between VREF (approximately 1.24V) and 18V with two external resistors. The Taiwan TS432 adjustable precision shunt regulators have active output circuitry with a very sharp turn-on characteristic, ideal for replacing zener diodes in applications.

Features

Precision reference voltage
- TS432A – 1.24V ±1%
- TS432B – 1.24V ±0.5%
20µA (typ.) Minimum cathode current for regulation
50ppm/ºC Equivalent full range temp. coefficient
Programmable output voltage up to 18V

Fast turn-on response
Sink current capability of 80µA to 100mA
0.05Ω Low dynamic output impedance
Low output noise
Halogen-free available

Applications

Voltage monitor
Delay timer
Constant–current source/sink

High-current shunt regulator
Crowbar
Over-voltage / under-voltage protection

Specifications

18V Cathode Voltage
100mA Continuous cathode current range
3mA Reference input current range
0.35W Power dissipation

+150 Junction temperature
0°C to +70°C Operation temperature range
-65°C to +150°C Storage temperature range

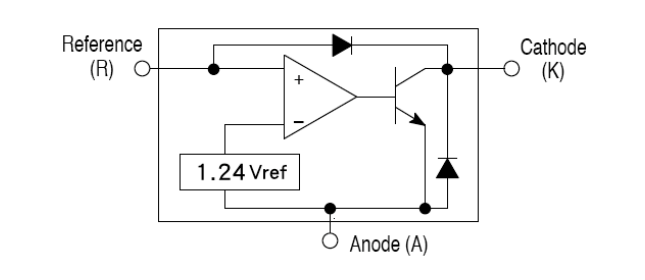

Block Diagram
