Texas Instruments DRV8762-Q1 H-Bridge Gate Driver
Texas Instruments DRV8762-Q1 H-Bridge Gate Driver is an integrated smart gate driver for 48V automotive H-Bridge applications. The device provides two half-bridge gate drivers, each capable of driving high-side and low-side N-channel power MOSFETs for automotive motor-control systems.
The DRV8762-Q1 utilizes an external 12V supply and an integrated bootstrap diode to generate the correct high-side gate-drive voltages. The TI DRV8762-Q1 H-Bridge Gate Driver includes Smart Gate Drive architecture, configurable peak gate-drive current, and closed-loop automatic deadtime insertion. Furthermore, the device features a trickle-charge pump that supports 100% PWM duty-cycle control and an overdrive gate-drive voltage for external switches.
The gate driver is ideal for 48V automotive motor control applications, automotive body motors, transmission actuators, and automotive BDC motors. Integrated low-side current-sense amplifiers, SPI-based diagnostics, protection features, and configurable device responses help support robust motor-drive system designs with fewer external components.
Features
- DRV8762-Q1 AEC-Q100 test guidance for automotive applications with device ambient temperature of -40°C to +125°C
- H-bridge gate driver for driving four N-channel MOSFETs
- Wide operating voltage range of 8V to 85V
- Bootstrap architecture for high-side gate driver operation
- Average gate switching current of 50mA for driving 400nC MOSFETs at 20kHz
- Trickle charge pump for 100% PWM duty cycle support and external cut-off or reverse-polarity protection circuits
- Smart Gate Drive architecture
- 8-level configurable peak gate-drive current up to 224mA source and 448mA sink
- Closed-loop automatic deadtime insertion based on gate-source voltage monitoring
- Configurable soft shutdown to minimize inductive voltage spikes during overcurrent shutdown
- Low-side current-sense amplifier
- 1mV low input offset across temperature
- 4-level adjustable gain
- Adjustable output bias for unidirectional or bidirectional sensing
- SPI-based detailed configuration and diagnostics
- Dedicated ASCIN pin for motor braking control with active short circuit
- Protection features
- Battery and power-supply voltage monitors
- MOSFET VDS and Rsense overcurrent monitors
- MOSFET VGS gate fault monitors
- Device thermal warning and shutdown
- Fault condition indicator pin
Applications
- 48V Automotive motor control applications
- Automotive body motors
- Transmission actuators
- Automotive BDC motors
Specifications
- One full bridge
- Control modes
- Independent half-bridge
- PWM
- Topology
- External FET
- Multi-channel
- Sleep current of 4.5µA
- Logic input support of 3.3V and 5V
- DRVOFF pin for the independent driver disable
- High-voltage nSLEEP wake-up pin
- 4x and 2x PWM modes
- Package
- 48-pin QFN package
- Package size of 7mm x 7mm

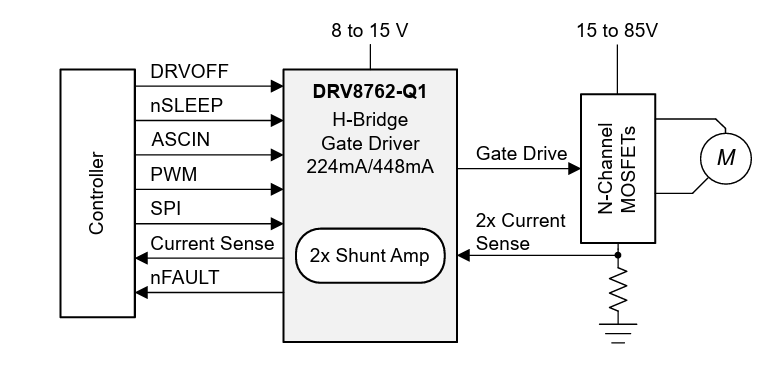

Simplified Schematic
