Texas Instruments TPS26750A USB Type-C® & USB PD Controller
Texas Instruments TPS26750A USB Type-C® and USB PD Controller is a highly integrated, stand-alone controller optimized for USB-C Power Delivery applications that require an extended power range and dual-role power support. The device supports PD 3.2 EPR operation and integrates fully managed power paths with robust protection, helping simplify complete USB-C PD system designs.
The TPS26750A supports EPR source and sink operation, 28V, 36V, and 48V EPR levels, programmable power supply, and adjustable voltage supply. The TI TPS26750A USB Type-C and USB PD Controller also provides integrated I2C control for TI battery chargers, liquid detection at the Type-C connector, configurable GPIOs, BC1.2 charging support, and 26V-tolerant CC pins for robust operation with non-compliant devices.
The controller is ideal for power tools, power banks, retail automation and payment, wireless speakers, headphones, personal electronics, and industrial applications. The TPS26750A is available in a 32-VQFN package.
Features
- PD 3.2 compatibility for Extended Power Range Dual Role Power applications
- Optimized for USB Type-C PD power applications
- Integrated I2C control for TI battery chargers
- Web-based GUI and pre-configured firmware for simplified configuration-image creation
- Extended Power Range support with TPD4S480
- Programmable power supply and adjustable voltage supply support
- PPS and AVS capabilities
- PPS source and sink support
- Standalone PPS source control for TI battery chargers
- Programmable interface for PPS sink
- AVS source support
- PPS and AVS capabilities
- EPR source and sink support with 28V, 36V, 48V, and AVS operation
- Liquid detection measured directly at the Type-C connector with integrated error handling and protection
- Integrated fully managed power paths with undervoltage protection, overvoltage protection, and current limiting for inrush current protection on the 5V/3A source power path
- 26V-tolerant CC pins for protection when connected to non-compliant devices
- Additional integrated functions
- 11 configurable GPIOs
- BC1.2 charging support
- 3.3V LDO output for dead battery support
- Power supply from 3.3V or VBUS source
Applications
- Power tools, power banks, and retail automation and payment
- Wireless speakers and headphones
- Personal electronics
- Industrial applications
Specifications
- Function type of Type-C and PD controller
- Power role support of DRP, Sink, and Source
- External power-path control through GPIO
- I2C ports
- One I2C controller port
- One I2C target port
- Data role support of DFP, DRD, and DRP
- Internal power path of 5V 3A
- Operating temperature range of -40°C to +125°C
- Package
- 32-VQFN RSM package
- Package size of 4.00mm × 4.00mm
Associated Products
Texas Instruments TPS26750 USB Type-C™和PD控制器
完整的USB-C解决方案，集成了全托管电源路径和强大保护功能。
Texas Instruments TPD4S48x-Q1 USB Type-C®端口保护IC
一款单芯片USB Type-C® IC，可提供IEC ESD保护和48V VBUS 短路过压保护。

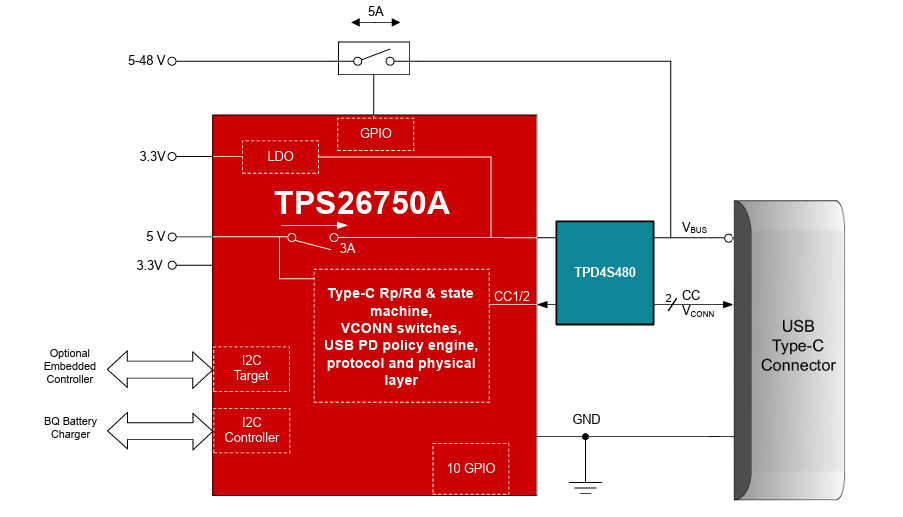

Schematic
