Welwyn / TT Electronics DPCR Defibrillator Pulse Chip Resistors

Welwyn / TT Electronics DPCR Defibrillator Pulse Chip Resistors are designed to withstand medical defibrillator surges. The resistors prevent electrical energy from diverting into sensitive monitoring equipment connected to a patient. This feature avoids any reduction in the effectiveness of defibrillation, while also protecting the equipment. 20K and 51K values at 5% tolerance are available and the resistors can withstand ESD to 15kV. Applications for Welwyn / TT Electronics DPCR Defibrillator Pulse Chip Resistors include defibrillators and heart, blood flow, and neurological monitors.

Features

Withstands medical defibrillator surges
Tested to IEC 60601-2-27 at 5kV peak
Tested to IEC 61000-4-2, Level 4 ESD
20K and 51K values standard at 5%

Anti-sulfur terminations
High stability of ohmic value

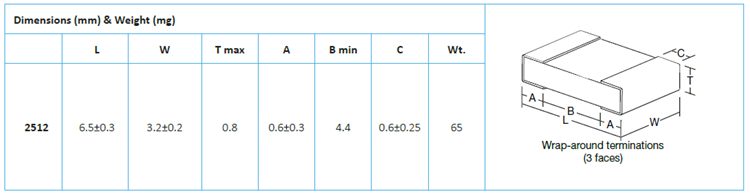

Standard 2512 chip format

Applications

External defibrillators
Portable defibrillators (AED)
Heart monitors (ECG)
Neurological monitors (EEG)

Blood flow monitors (impedance plethysmography)
Any electrically connected medical devices
Cables for connecting monitors

Thick film resistor material, overglaze, and organic protection are screen printed on a 96% alumina substrate. Wrap-around terminations have an electroplated nickel barrier and solderable coating; this ensures excellent ‘leach’ resistance properties and solderability.
