Vishay Semiconductors 硅光电晶体管和光电二极管

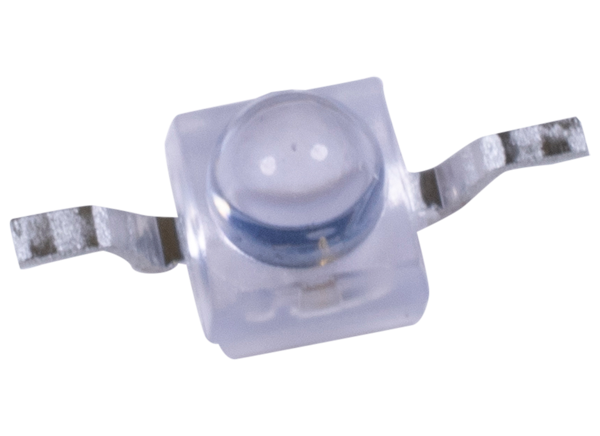

Vishay Semiconductors VEMT2500X01系列是硅NPN外延平面光电晶体管，VEMD2500X01和VEMD2520X01是高速、高灵敏的PIN光电二极管。这些Vishay Semiconductors硅光电晶体管和光电二极管均为配有凸圆透镜的透明环氧树脂微型表面贴装件(SMD)，均对可见和近红外辐射敏感。

特性

  • AEC-Q101 qualified
  • High radiant sensitivity
  • Suitable for visible and near infrared radiation
  • Fast response times
  • Package matched with IR emitter series VSMB2000X01
  • Lead (Pb)-free reflow soldering
  • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
  • Halogen-free according to IEC 61249-2-21 definition

规范

  • Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.8
  • Package type: surface mount
  • Angle of half sensitivity: ϕ = ± 15°
  • Floor life: 4 weeks, MSL 2a, acc. J-STD-020
  • Operating temperature: -40°C to +100°C

应用

  • Phototransistors
    • Detector in automotive applications
    • Photo interrupters
    • Miniature switches
    • Counters
    • Encoders
    • Position sensors
  • Photodiodes
    • High speed photo detector
