Analog Devices Inc. ADXL383 Wide Bandwidth 3-Axis MEMS Accelerometer
Analog Devices ADXL383 Wide Bandwidth 3-Axis MEMS Accelerometer is a low noise density, low power, 3-axis accelerometer with selectable measurement ranges. The ADXL383 supports ±15g, ±30g, and ±60g ranges. The ADXL383 offers industry-leading noise, enabling precision applications with minimal calibration. The low noise and low power of the ADXL383 enable accurate measurements of audio signals or heart sounds, even in high-vibration environments.
The ADXL383 multifunction pin names may be referenced only by the relevant function for either the serial peripheral interface (SPI) or inter-IC (I2C) interface, or these pin names can be referenced by the audio function (pulse density modulation (PDM), inter-IC sound (I2S), or time division multiplexing (TDM)).
In addition to its low power consumption, the ADXL383 has many features to enable true system-level performance. These features include a built-in micropower temperature sensor, single-, double-, or triple-tap detection, and a state machine to prevent false triggering. In addition, the ADXL383 has provisions for external control of the sampling time and/or an external clock.
The Analog Devices ADXL383 operates on a wide 2.25V to 3.6V supply range (or a 1.8V supply) and can, if necessary, interface with a host operating at a separate supply voltage. The ADXL383 is available in a 14-terminal, 2.90mm × 2.80mm × 0.87mm, LGA package.
Features
- 16kHz wide bandwidth
- 1.6dB (XY) and 1.9dB (Z) relative flatness with digital correction (< 15kHz)
- 3.5dB (XY) and 4.5dB (Z) relative flatness without digital correction (< 5kHz)
- Low power consumption
- High performance: 520μA
- Ultra-low power: 33μA
- 171μg/√Hz (XY) and 208μg/√Hz (Z) low noise density at full 16kHz bandwidth
- 44μg/√Hz (XY) and 55μg/√Hz (Z) ultralow, midband noise density
- Group delay of 68μs for low latency I2S/TDM; 25μs for PDM
- Built-in features for system-level power savings
- Single tap, double tap, and triple tap detection
- Activity and inactivity detection
- Configurable interrupt modes
- Digital features
- 16-bit ADC
- Multiprotocol serial interfaces: SPI or I2C
- Multiprotocol audio data output: I2S, TDM, and PDM
- Programmable LPF and HPF
- Data synchronous or asynchronous sampling
- Output FIFO: 320 word
- Integrated temperature sensor
- Voltage range options
- VS with internal regulators: 2.25V to 3.6V (or V1P8 at 1.8V)
- VDDIO: 1.14V to 3.6V (1.62V to 3.6V from -40°C to +125°C)
- 10,000g mechanical shock
- -40°C to +125°C operating temperature range
Applications
- Condition-based monitoring
- Structural health monitoring
- Seismic imaging
- Robotics
- Audio and active noise cancellation (ANC)
- Wearables and low-power motion detection

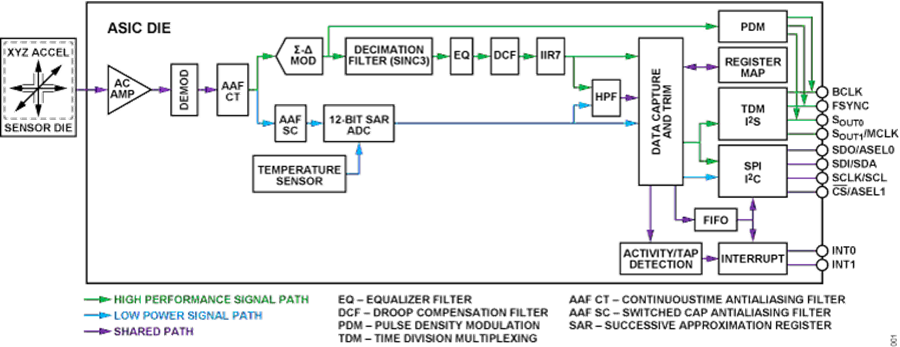

Functional Block Diagram
