C&K Switches SUM Ulta-Miniature Snap-Acting Switches
C&K Switches SUM Ulta-Miniature Snap-Acting Switches are single-pole, double-throw (SPDT) switches with a 3A maximum electrical load. C&K Switches SUM Ulta-Miniature Snap-Acting Switches have a 10,000- to 300,000-cycle electrical life, a 1 million-cycle minimum mechanical life, and 500VRMS of dielectric strength. The snap switches are designed for ultra-miniature space constraints and can be integrated into utility systems, medical equipment, and home appliances.
Features
- SPDT detection switches
- 3A maximum electrical load
- Ultra-miniature interface
- Snap-action switching
Applications
- Gas and water meters
- Utility systems
- Door interlocks
- Position sensing
- Mechanical precision detection
- Surgical, disposable medical equipment
- Class II blood monitoring devices
- Lid detection
- Electronic shifter detection switches
- Trunk and hood detection switches
- Home appliances
- Data centers
- Communication infrastructure
- Access control systems
Specifications
- Electrical life
- 10,000 minimum cycles for 1A and 3A
- 300,000 minimum cycles for other models
- Contact rating
- 3A at 125VAC or 24VDC
- 1A at 125/250VAC or 24VDC
- 0.1A at 125VAC or 60VDC
- 1 million-cycle minimum mechanical life
- 100MΩ minimum insulation resistance
- 500VRMS dielectric strength
- 80g or 150g pin plunger operating force
- LCP actuator

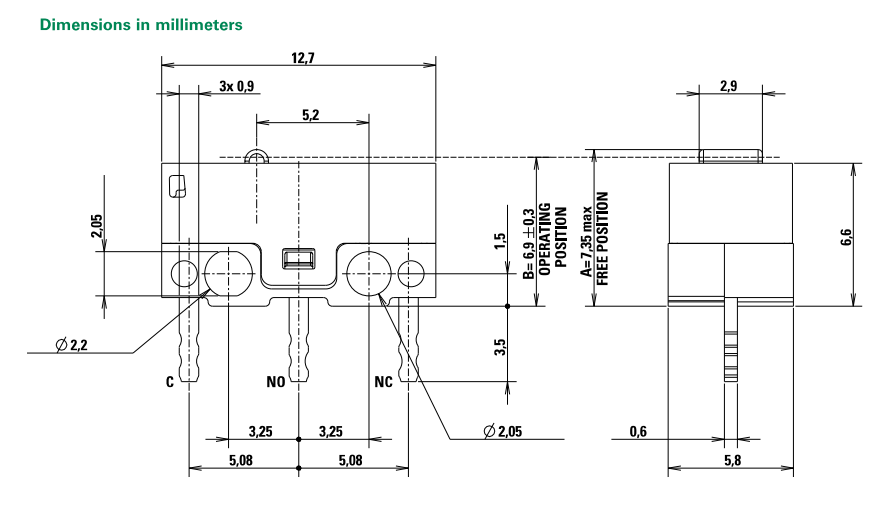

Mechanical Drawing

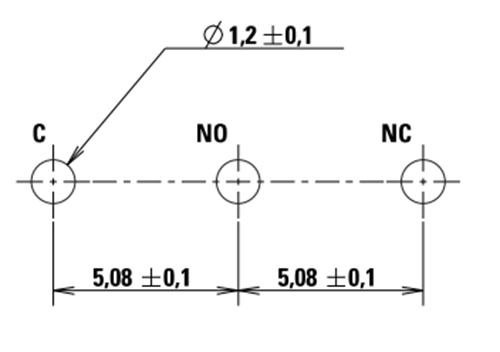

PC Mounting

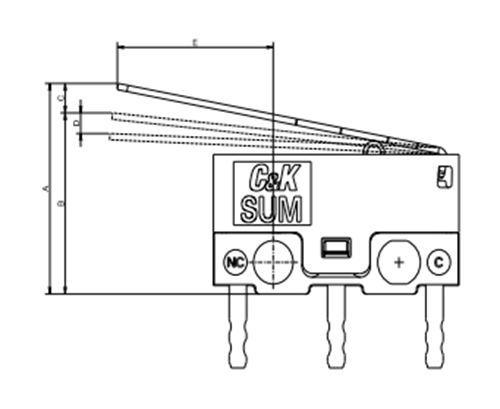

Switch Characteristics

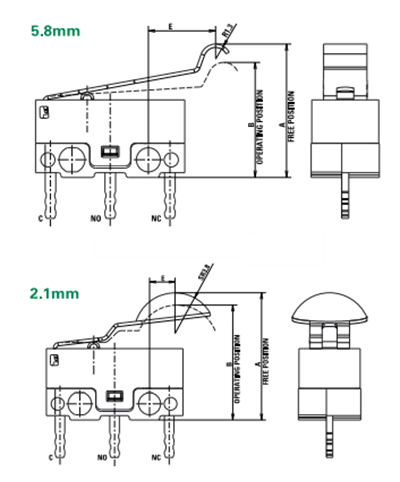

Actuator Examples
