Infineon Technologies EiceDRIVER™ 2EDN栅极驱动器评估套件
英飞凌EiceDRIVER™ 2EDN栅极驱动器评估套件为双通道非隔离式栅极驱动器IC EiceDRIVER™提供了测试平台。该双通道驱动器旨在驱动TO-220封装中的两个低侧MOSFET（可布置在电路板上）。此评估套件需要外接函数发生器和直流电源，以向2EDN7534U和2EDN7534B板提供输入信号。
特性
- Test platform for dual-channel non-isolated gate driver IC EiceDRIVER™ 2EDN7534B and 2EDN7534U
- Feed two MOSFETs, suggesting CoolMOS™ or OptiMOS™ solutions
- Requires an external function generator and DC power
- Packages:
- KIT_DRIVER_2EDN7534B in PG-SOT23-6-pin
- KIT_DRIVER_2EDN7534U in PG-TSNP 6-pin
应用
- Switch-Mode Power Supplies
- DC-DC power converters
- Synchronous rectification stages
- Power factor correction system

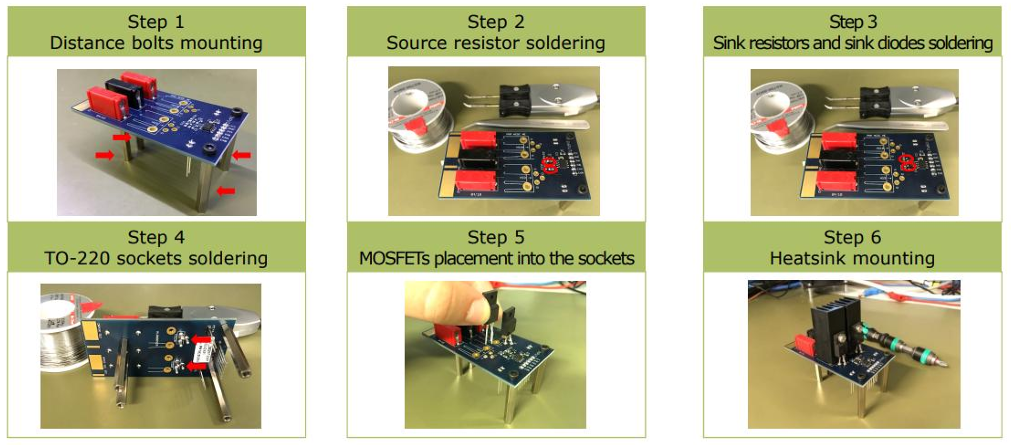

套件内容
- Distance bolts
- Source resistors
- Sink resistors
- Sink diodes
- TO-220 sockets
- TO-220 MOSFETs
