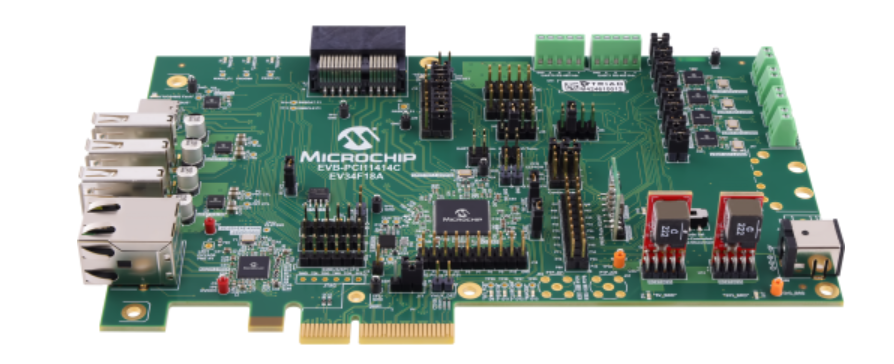

Microchip Technology EVB-PCI11414C Evaluation Board

Microchip Technology EVB-PCI11414C Evaluation Board is a demonstration platform for the PCI11414C PCIe peripheral. The board incorporates PCIe connectivity, an integrated USB 3.2 Gen 2 host controller, Ethernet, 10BASE-T1S networking, and programmable I/O. This working hardware platform helps developers evaluate the PCI11414C and accelerate its integration into embedded designs.

The Microchip EVB-PCI11414C Evaluation Board supplies four USB-IF-compliant host ports, one downstream PCIe port, an onboard KSZ9131 Ethernet transceiver, and a LAN8651 10BASE-T1S interface. Ethernet Precision Time Protocol and PCIe Precision Time Measurement support synchronized networking and PCIe timing applications. RS-232/485 connectivity and programmable I²C, SPI, UART, and GPIO functions extend the board’s evaluation capabilities.

The platform demonstrates driver compatibility with Linux^®, Microsoft^® Windows^®, and Android^®, and offers additional support for QNX, VxWorks, and FreeBSD. MPLAB^® Connect supports advanced configuration and diagnostics, including PCIe virtual eye-diagram visualization.

Features

Demonstration and evaluation platform for the PCI11414C PCIe peripheral
Integrated USB 3.2 Gen 2 host-controller evaluation
Ethernet precision time protocol support
PCIe Precision Time Measurement support
10BASE-T1S networking through the onboard LAN8651
RS-232/485 connectivity
Multi-OS driver compatibility

Programmable I/O options for I²C, SPI, UART, and GPIO
Onboard I²C serial EEPROM for board configuration and customization
MPLAB Connect support for advanced configuration and diagnostics
PCIe virtual eye-diagram visualization
Six-layer RoHS-compliant PCB construction

Specifications

PCI11414C PCIe peripheral
USB host interfaces
- 1x USB Type-C^® USB 3.2 Gen 2 SuperSpeed+ downstream port
- 3x USB Type-A USB 2.0 High-Speed downstream ports
PCIe
- 1x downstream-facing PCIe port
- PCIe Precision Time Measurement support
Ethernet
- 2.5G Ethernet MAC presented through a 1G PHY
- Onboard KSZ9131 10/100/1000Mbps Ethernet transceiver
- IEEE 1588v2 Precision Time Protocol support
- LAN8651 10BASE-T1S interface through SPI
Serial connectivity
- RS-232
- RS-485

Programmable interfaces
- I²C
- SPI
- UART
- GPIO
Power
- Single regulated 12.0V external power supply
- LED indicators for 5V, 3.3V, and 1.1V regulator outputs
Operating-system compatibility
- Linux
- Microsoft Windows
- Android
Additional operating-system options
- QNX
- VxWorks
- FreeBSD
