Panasonic ERA 8X Thin Film Chip Resistors
Panasonic ERA 8X Thin Film Chip Resistors with a 0.25W power rating and a limiting element voltage up to 750V are designed for high-resistance and high-voltage applications. These resistors feature high voltage capability, high reliability, ±0.1% resistance tolerance, low TCR, and low current noise. The ERA 8X resistors offer excellent linearity, anti-ESD performance up to 4kV HBM, anti-sulfur construction, and stable operation in high temperature and humidity environments. These resistors are manufactured in a 1206 surface-mount chip package, RoHS-compliant, and operate across a wide temperature range of -55°C to +155°C. Typical applications include precision high-voltage circuits, industrial electronics, communication equipment, office automation products, commercial equipment, and other electronic systems requiring accurate, stable, and reliable resistance performance.
Features
- High limiting element voltage of 750V
- High reliability
- High accuracy
- High performance
- 0.25W power rating
- 160kΩ to 10MΩ resistance range
- ±0.1% resistance tolerance
- -55°C to +155°C operating temperature range
- Anti-ESD
- AEC-Q200-002 HBM guarantee at 4kV
- Anti-sulfurated
- IEC 60115-8, JIS C 5201-8, and JEITA RC-2133C standards
- 1206 surface-mount chip package
- RoHS compliant
Applications
- High-voltage power supplies and voltage divider circuits
- Industrial control and automation equipment operating at elevated voltages
- Battery management and EV-related sensing/protection circuits
- Precision measurement
- Instrumentation
- Monitoring systems

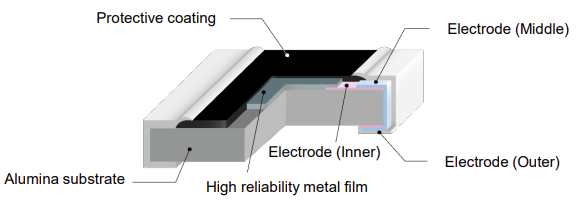

Construction

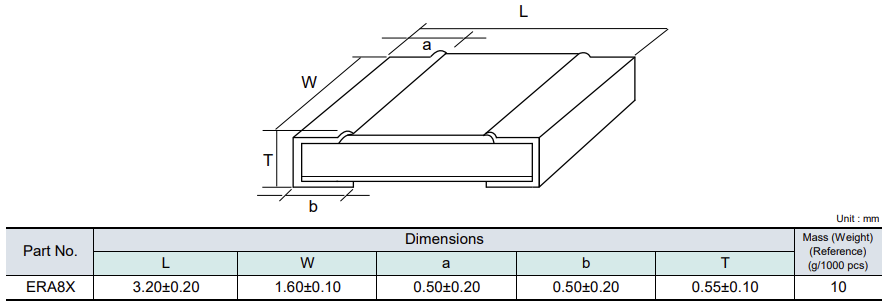

Dimensions

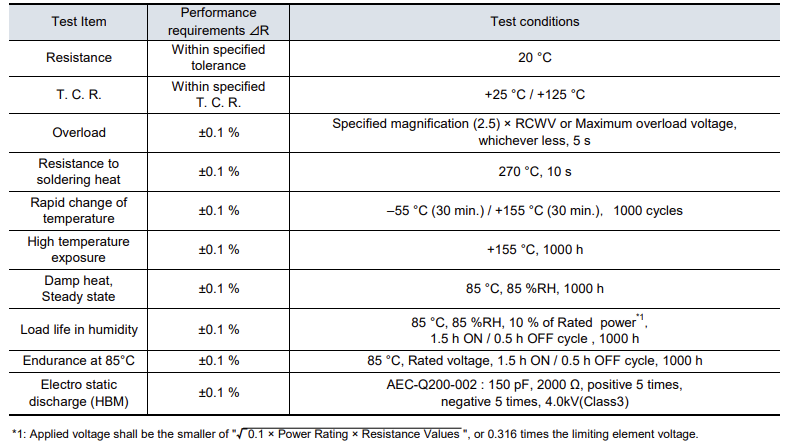

Performance
