TE Connectivity / DEUTSCH DTHD连接器

TE Connectivity (TE) DEUTSCH DTHD电源插头是一款单端子连接器，是针对需要完整环境密封的单一电路端子应用而开发。该插头采用整体式连接闩锁，在连接过程中可提供触觉和声音反馈。坚固的热塑插座设计为用于线对线应用的内嵌式插座，配备整体式V型坡口，以使用固定夹、托架和法兰。压接式实心触点提供4、8和12尺寸，分别可使用AWG6、AWG8、AWG10、 AWG12和14尺寸的线缆。

特性

  • 1500VAC下漏电流低于2mA
  • 工作温度范围：-55°C至+125°C
  • 提供4 (100A)、8 (60A) 和12 (25A) 触点尺寸
  • 6AWG至14AWG
  • 1膜腔配置
  • 内嵌式或法兰固定
  • 圆形热塑性塑料外壳
  • 整体式连接闩锁

规范

  • -55°C to +125°C operating temperature range, continuous at rated current
  • No electrical or mechanical defects after 100 cycles of engagement and disengagement
  • Vibration:
    • No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20G’s at 10 to 2000Hz in each of the three mutually perpendicular planes
    • No electrical discontinuities longer than 1 microsecond
  • Physical shock:
    • No unlocking, unmating, or other unsatisfactory result during or after 50G’s in each of three mutually perpendicular planes
    • No electrical discontinuities longer than 1 microsecond
    • MIL-STD 202, method 213, Condition “C”
  • Fluid resistance with connectors shows no damage when exposed to most fluids used in industrial applications
  • 1000megohms insulation resistance minimum at 25°C
  • Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage
  • Current leakage less than 2milliamps at 1500VAC dielectric withstanding voltage
  • Thermal cycle with no cracking, chipping, or leaking after 20 test cycles

Electrical Connectors

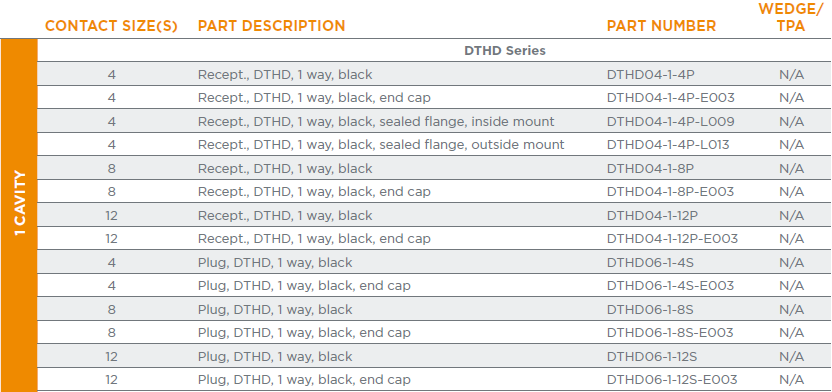

图表 - TE Connectivity / DEUTSCH DTHD连接器

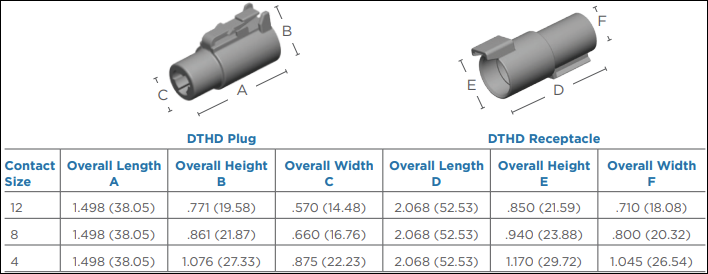

Dimensions

机械图纸 - TE Connectivity / DEUTSCH DTHD连接器
