Vishay / Thin Film IGBR Thin Film Resistors
Vishay / Thin Film IGBR Resistors are AEC-Q200 qualified high-power back-contact resistors designed for SiC, GaN, and IGBT power modules. These resistors utilize the excellent thermal properties of silicon to enable ultra-high power ratings in a miniature case size for hybrid assemblies. The IGBR resistors require only a single wire bond, saving hybrid assembly space and helping reduce or eliminate noise in SiC power modules. These thin film resistors support operating temperatures up to 200°C, and are available with sintering, soldering, or epoxy attachment options. Typical applications include automotive electrification, industrial HVAC systems, alternative energy equipment, MRI systems, LED lighting, data servers, and other high-power hybrid assemblies.
Features
- AEC-Q200 qualified
- Vishay Electro-Films (EFI) technology
- Noise reduction or elimination when used in SiC power modules
- Sintering, soldering, and epoxy attachment options
- Designed to operate at elevated temperatures up to 200°C
- Single wire bond assembly
- Moisture resistant
- 0202 to 0808 case sizes
- Pb-free and halogen-free
- RoHS compliant
Applications
- Current balancing resistor for SiC, GaN, and IGBT power modules
- Automotive electrification
- High power MRI
- Industrial HVAC
- Alternative energy
- LED lighting
- Hybrid assemblies
- Data management servers

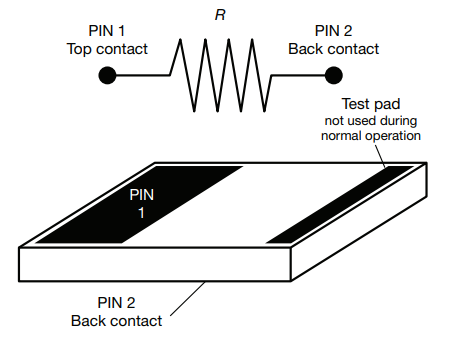

Schematic

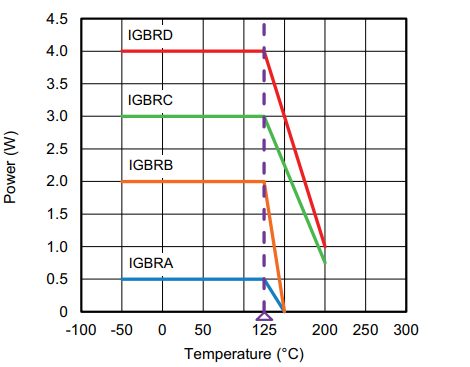

Power Derating Curve
