Altera MAX® V开发套件

市场领先的CPLD供应商Altera DK-DEV-5M570ZN MAX® V CPLD开发套件提供了全面的低成本硬件平台，可让用户快速开始开发低成本、低功耗CPLD设计。

As an entry-level development platform, the MAX V CPLD Development Kit allows users to evaluate the functionality and features of the FPGA to meet design needs. It includes the board, IP solutions, and FPGA software tools. The board is equipped with general-purpose and motor control headers to connect and test peripherals and accessories, facilitating the evaluation of designs.

特性

  • Dual general-purpose I/O (GPIO)
  • User flash memory (UFM)
  • Capacitor sense button
  • User LEDs and push buttons
  • Replaceable oscillator
  • Embedded USB Blaster
  • Off-chip I2C and SPI EEPROM interfaces
  • Speaker header
  • Two DC motor headers
  • Variable output voltage selection
  • 0°C to +45°C operating ambient temperature range

应用

  • I/O expansion
  • Configuration and initialization control
  • Interface bridging
  • Capacitive sensor switch-based applications
  • Industrial control
  • Motor control
  • Analog interface control
  • Power management control

客户应用案例

  • Develop designs for the 5M570Z CPLD tailored to target applications
  • Interface to external functions or devices via four connectors
  • Create solutions using capacitor sense push button switches and other push button switches, ideal for applications requiring reliability, durability, comfort, and design
  • Configure the FPGA through a USB Blaster 2 cable
  • Reuse the kit’s board layout and schematic to accelerate designs
  • Start immediately with the free version of Quartus® Prime Lite Edition Software, an intuitive, high-performance design tool that supports design entry, synthesis, optimization, verification, and simulation

套件内容

  • MAX V CPLD开发板
  • 一根用于为电路板供电的USB电缆
  • 用于CPLD配置的嵌入式USB-BlasterTM电路
  • 各种用户LED、按钮和电容检测按钮
  • 标准电脑扬声器接头
  • 两个直流电机接头
  • 用于与子卡插接的通用I/O连接器

框图

框图 - Altera MAX® V开发套件

概述

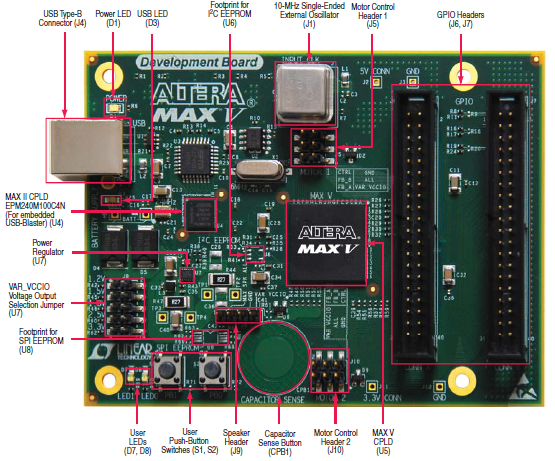

位置电路 - Altera MAX® V开发套件
