Analog Devices Inc. EVAL-CN0396-ARDZ 评估板
Mouser 供应的 Analog Devices EVAL-CN0396-ARDZ 采用 Arduino 扩展外形尺寸，有助于设计人员为 CN0396 双重有毒气体检测系统快速建立原型。 该 CN0396 双重有毒气体检测系统能够使用同一个电化学气体传感器检测多种气体（如 CO/H2S）。 板载、高精密温度设备确保系统校准和测量获得温度校正。 设计人员还可对系统进行编程，以接受其他气体组合。 当气体不安全以及气体含量达到用户定义的阈值时，LED 指示器会警示设计人员。
特性
- Dual electrochemical gas sensor
- Designed to work with the EVAL-ADICUP360 Development Board
- Temperature compensation
- 16-bit digitization
- Arduino-compatible form factor
- Programmable LED indicators
必要设备
-
EVAL-CN0396-ARDZ Circuit Evaluation Board
-
EVAL-ADICUP360 Development Board or Arduino R3 Compatible Processor Board
-
6V or 6 power supply (not needed if plugged into the PC via USB)
-
4-Electrode Electrochemical Gas Sensor (CO-H2S sensor is provided with the evaluation board)
-
Environmental chamber
-
Calibration gases
-
Precision current sources (alternative to actual sensor and gases)
Board Layout

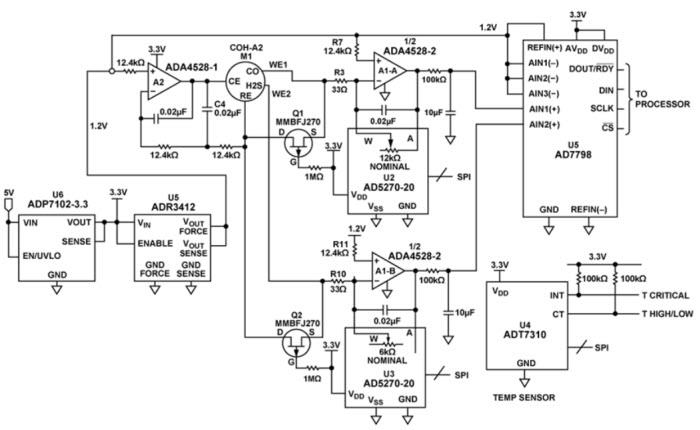

Diagrams
发布日期: 2016-09-06
| 更新日期: 2023-01-13
