Apacer Technology Inc. PV910-M280 PCI Express Flash Drive
Apacer Technology Inc. PV910-M280 PCI Express Flash Drive features low latency and high performance, with read speeds up to 1,615MB/s and write speeds up to 1,310MB/s. This flash drive is built with a powerful PCIe controller that supports on-the-module ECC and an efficient wear-leveling scheme. The Low-Density Parity Check (LDPC) ECC engine extends SSD endurance and increases data reliability, and the built-in thermal sensor monitors the SSD's temperature via S.M.A.R.T. commands. The PV910-M280 from Apacer features thermal throttling that dynamically adjusts frequency scaling to enhance data reliability and sustain performance during overheating. This flash drive supports power-saving modes, flash block management, S.M.A.R.T., TRIM, Hyper Cache technology, overprovisioning, DataDefender™, and SMART Read Refresh™.
Features
- Flash management:
- Low-Density Parity-Check (LDPC) code
- Global wear leveling
- Flash bad-block management
- Page mapping flash translation layer
- DataDefender™
- S.M.A.R.T.
- TRIM
- Hyper Cache technology
- Over-provisioning
- SMART Read Refresh™
- NVMe Secure Erase
- 3D TLC (BiCS3) NAND flash type
- LED indicators for drive behavior
- 75-pin M.2 module pinout connector type
- Power management:
- Supports APST
- Supports ASPM L1.2
- Security:
- AES 256-bit hardware encryption
- Signed firmware
- Reliability:
- Thermal sensor
- Thermal throttling
- End-to-end data protection
- RoHS compliant
Applications
- Industrial
- Imaging
- Computing
- Enterprise markets
Specifications
- Capacity:
- Single side: 120GB, 240GB, and 480GB
- Double side: 960GB
- Performance:
- 2GB/sec interface burst read/write
- Up to 1,615MB/sec sequential read
- Up to 1,310MB/sec sequential write
- Up to 135,000IOPS Random read (4K)
- Up to 130,000IOPS random write (4K)
- >3,000,000 hours MTBF
- Endurance (in Drive Writes Per Day: DWPD):
- 120 GB: 2.02DWPD
- 240GB: 1.99DWPD
- 480GB: 1.96DWPD
- 960GB: 1.86DWPD
- Temperature range:
- 0°C to 70°C standard operating temperature range
- -40°C to 85°C wide operating temperature range
- -40°C to 100°C storage temperature range
- 3.3V ±5% supply voltage
- Power consumption:
- 745mA in active mode (maximum)
- 145mA in idle mode
- Form factor:
- M.2 2280-D5-B-M key

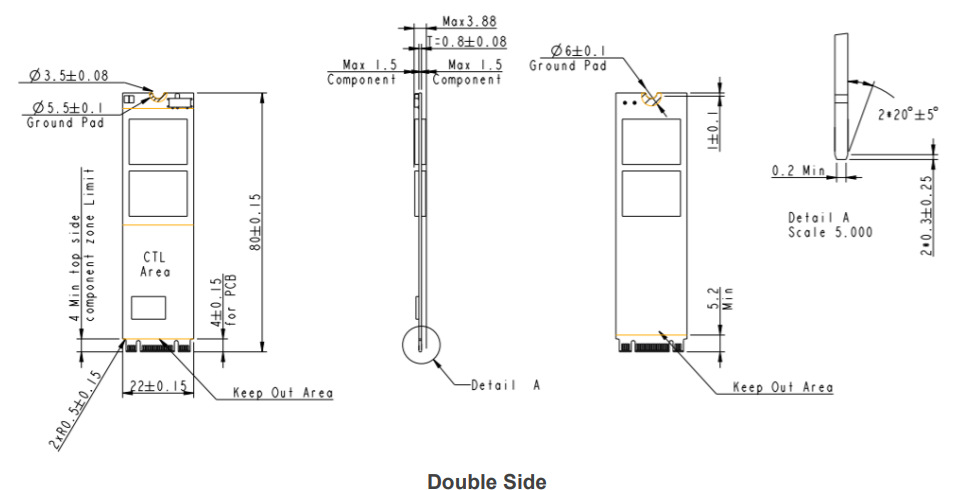

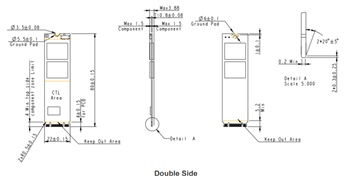

- Dimensions:
- 22mm x 80mm x 2.38mm single side
- 22mm x 80mm x 3.88mm double side
- 6.61g ±5% net weight

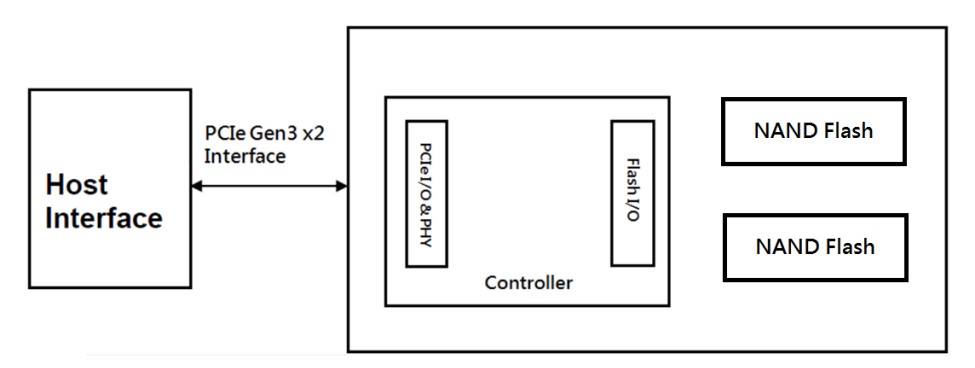

Functional Block Diagram
