C&K Switches APL Lock Pushbutton Switches
C&K Switches APL Lock Pushbutton Switches are designed for applications requiring safety, reliability, and a maintained ON/OFF function. These switches can be applied to a variety of different industries, from medical to industrial to transportation, especially for safety and reliability requirements. The APL switches feature a long mechanical life and IP67 sealing, making them dust- and water-resistant and able to withstand harsh operating conditions. This helps to reduce power consumption. These pushbutton switches are ideal for harsh environments, off-road, industrial, medical, and transportation.
Features
- IP67 sealed
- 10,00,000 life cycles
- Illumination / non-illumination
- Threaded or snap-in mounting
- RoHS compliant
Applications
- Industrial equipment and control panels
- Medical devices requiring reliable operator interfaces
- Transportation systems and vehicle controls
- Off-road and harsh-environment requirements
Specifications
- 100mA at 24V DC resistive (2,00,000 cycles) contact rating
- 1000V AC minimum dielectric strength
- 1000MΩ minimum insulation resistance
- 50mΩ maximum initial contact resistance
- Maximum 10ms during activation bounce time
- -30°C to +85°C operating temperature range
- Mechanical:
- 10,00,000 cycles operating life
- 2.5 ± 0.25mm total travel
- 1.7mm operating point
- 8N maximum operating force

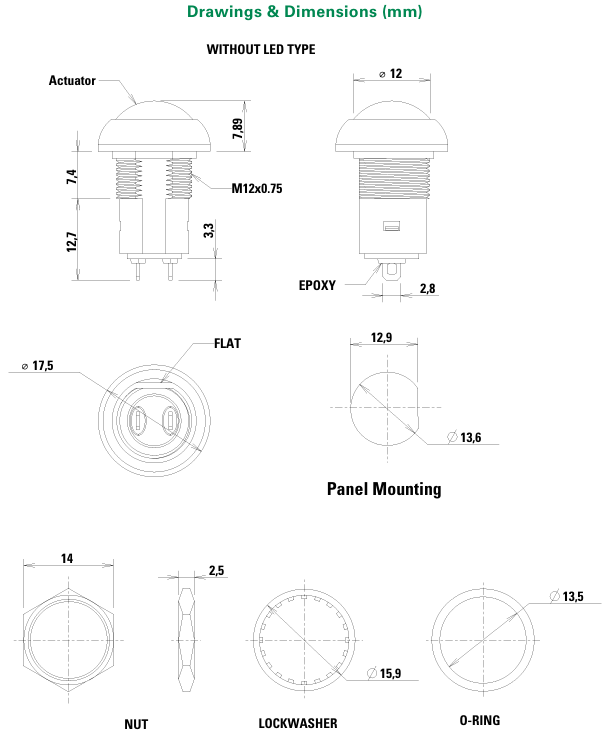

Dimensions
