Coilcraft 0302(0805)片式电感器
Coilcraft 0302(0805)片式电感器是超小型线绕式电感器，体积比Coilcraft 0402 陶瓷片式电感器小20%。Coilcraft 0303 陶瓷片式电感器具有0.67-34nH范围内的35种电感值。该系列器件还具有超高Q值——2.4GHz时达131。
特性
- Ultra-small wire-wound inductor is 20% smaller than Coilcraft 0402CS Ceramic Chip Inductors
- Very high self-resonant frequencies
- Silver-platinum-glass frit terminations (RoHS compliant, 260°C compatible)
- Inductance values from 0.67 to 34nH
- Exceptionally high Q, up to 131 at 2.4GHz
- Samples of all values are available in Coilcraft Designer's Kit C370

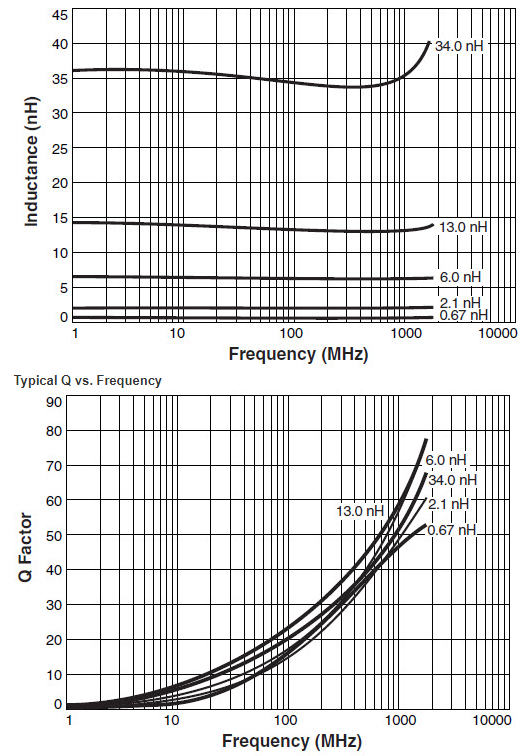

Typical Inductance vs Frequency
