Comchip Technology BAS16-HF SMD Switching Diode
Comchip Technology BAS16-HF SMD Switching Diode features a small surface mount package and a fast switching speed. This device offers a reverse recovery time of 6nS, power dissipation of 225mW, and a 100V peak reverse voltage.
Features
- Fast switching device
- 6nS reverse recovery time (TRR)
- 225mW power dissipation (PD)
- High stability and high reliability
- 75V reverse voltage (VR)
- 100V peak repetitive reverse voltage (VRRM)
- 150mA average rectified current (IO)
- 2A peak forward surge current (TJ)
- 1µA reverse leakage current IIR)
- 2pF capacitance (CT)
- SOT-23 package
- RoHS-compliant and halogen-free
Applications and Series
- Protection circuit
- Time delay circuits

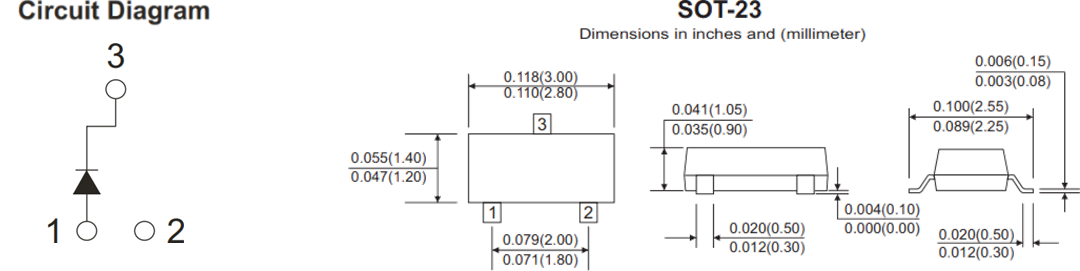

Circuit Diagram & Package Outline
