Kneron M2AI-2280-520 AI Edge Computing Module
Kneron M2AI-2280-520 AI Edge Computing Module is designed to bring Artificial Intelligence (AI) and Machine Learning (ML) inferencing to existing systems. Based on the KL520 Neural Processor Unit (NPU), the M2AI-2280-520 connects to embedded systems that support M.2 22mm x 80mm modules. The KL520 provides an efficient AI computing performance of 0.56 TOPS per Watt, perfect for remote, mobile, and unmanned applications.
The Kneron M2AI-2280-520 AI Edge Computing Module is available individually (PER-T520-M2AI-A11-0801) or paired with an EverFocus EUA1200 Full HD Camera (PER-T520-M2AI-A11-K801).
Features
- AI Edge Computing Module (M2AI-2280-520)
- Kneron KL520 NPU (Designed by Arm architecture)
- M.2 form factor
- Support Framework: ONNX, TensorFlow, Keras, Caffe
- Support Model: Vgg16, Resnet, GoogleNet, YOLO, Tiny YOLO, Lenet, MobileNet, DenseNet
- Memory type: LPDDR2
- NPU power efficiency: 0.56TOPS/W
- 0.5W overall power consumption
- Dimensions: 22mm x 80mm
- Optional Everfocus EUA1200 1080p Full HD USB Camera
- 1080p progressive scan CMOS sensor
- 3.6mm / 6mm fixed lens (selectable)
- Supports USB 2.0 OTG
Documents
Related Products
Kneron KL520 AI SoC
Designed to provide smart-home and IoT applications with on-device Edge AI and Machine Learning.
Kneron M2AI-2242-520 AI Edge Computing Module
Adds AI and Machine Learning to embedded systems that support M.2 22mm x 42mm modules
Kneron MINI-AI-520 AI Edge Computing Module
Adds AI and Machine Learning to embedded systems that support mPCIe modules.
Kneron AI Dongle
Compact, portable USB accessory designed to bring AI and ML inferencing to existing systems.
Kneron KL520 AI SoC Development Kit
Evaluation platform for the KL520 AI (Artificial Intelligence) SoC (System on a Chip).
Kneron PICO-APL3-FAI1 AI Vision + Edge Computing Kit
Includes a PICO-ITX Single Board Computer, an AI Edge Computing Module, and a full HD camera.
Kneron KL520 LW3D Pro AI Module
Adds AI and Machine Vision to applications such as smart locks, access control and IoT devices.
Block Diagram
Board Layout

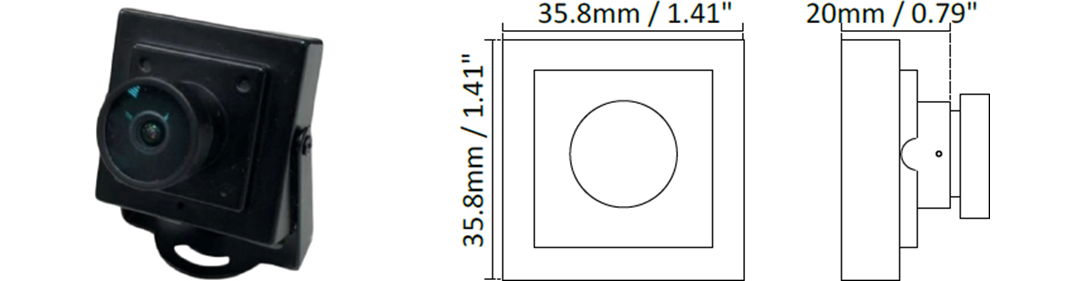

EUA1200 Camera Dimensions
