MACOM MASW-011249 200W High Power Switch
MACOM MASW-011249 200W High Power Switch is a single-pole, double-throw (SPDT) high power, broadband, high linearity, PIN diode T/R switch for 0.01GHz to 7.0GHz high power applications. An industry-standard, lead-free 5mm HQFN plastic package houses the device. This device incorporates a PIN diode die fabricated with a low-loss, high-isolation switching diode process. The MACOM MASW-011249 serves applications requiring a low-loss, high-isolation, and high-power handling SPDT.
Features
- Broadband performance
- Low loss at 4.2GHz
- TX = 0.31dB
- RX = 0.40dB
- High isolation at 4.2GHz (RX = 48dB)
- Power handling at 1.8GHz
- 240W CW at +85°C
- 190W CW at +120°C
- Lead-free 5mm 20-lead HQFN package
- RoHS-compliant
Applications
- Low-loss SPDT
- High-isolation SPDT
- High-power SPDT

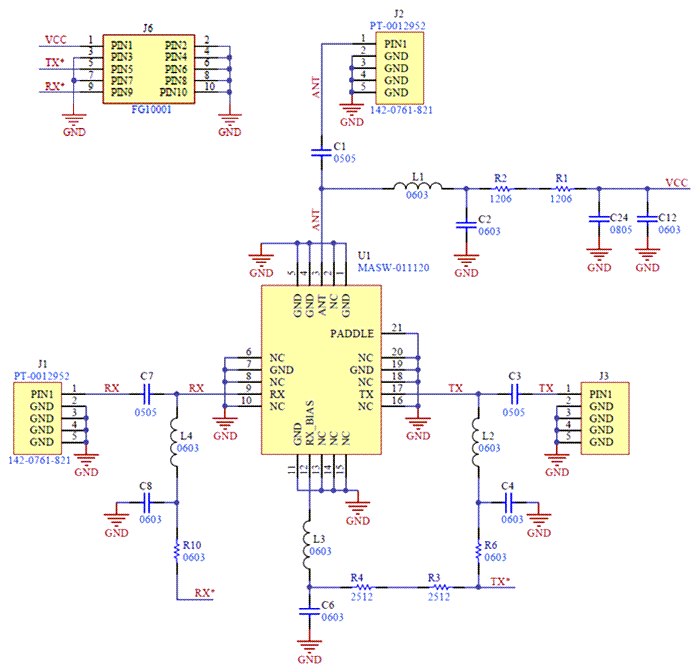

Application Schematic
Functional Schematic
