Maxwell Technologies 3.0V XP™ Small Cell Ultracapacitors

Maxwell Technologies 3.0V XP™ Small Cell Ultracapacitors are designed to provide energy storage while supporting renewable energy, smart grid, and IoT. The 3.0V solutions provide a cost-efficient, high performance, long-life platform, and are available in 3F, 5F, 10F, 25F, and 50F. The ultracapacitors are high energy, high power solutions that also incorporate the XP technology offering enhanced performance under adverse environmental conditions. Applications for the 3.0V XP small cell ultracapacitors include actuators, emergency lighting, telematics, automotive, backup systems, smart meter, and robotics.

Features

  • 2500 hours biased humidity life, provides durability in demanding operating conditions
  • -40°C to +85°C operating temperature range
  • Flexibility for system operation in diverse environments
  • 3F to 50F capacitance range
  • High-quality structure and sealing
  • Compliant with UL, RoHS, and REACH

Applications

  • Smart metering
  • Automotive
    • Data logging
    • Advanced driver assistance systems
    • Autonomous driving
    • Backup power
  • Uninterruptable power supplies (UPS)
  • Robotics
  • Telematics
  • Medical devices
  • Consumer electronics
  • Actuators
  • Emergency lighting
  • Security equipment

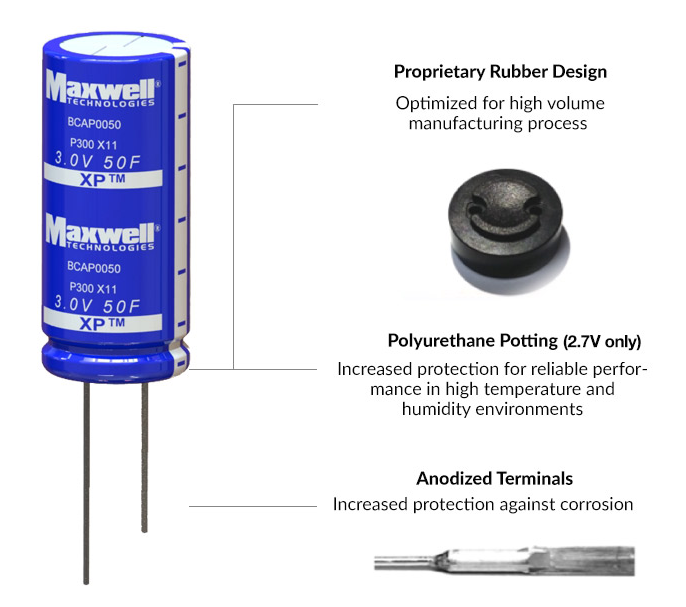

Design Benefits

Maxwell Technologies 3.0V XP™ Small Cell Ultracapacitors
View Results ( 22 ) Page
物料编号 数据表 电容 ESR 长度 直径
BCAP0010 P300 X12 BCAP0010 P300 X12 数据表 10 F 20 mOhms 30.5 mm 10 mm (0.394 in)
BCAP0010 P270 S01 BCAP0010 P270 S01 数据表 10 F 75 mOhms 30.5 mm 10 mm (0.394 in)
BCAP0025 P270 S01 BCAP0025 P270 S01 数据表 25 F 15 mOhms 25.5 mm 16 mm (0.63 in)
BCAP0003 P300 X11 BCAP0003 P300 X11 数据表 3 F 95 mOhms 19.5 mm 8 mm (0.315 in)
BCAP0005 P270 S01 BCAP0005 P270 S01 数据表 5 F 36 mOhms 20.5 mm 10 mm (0.394 in)
BCAP0010 P270 S12 BCAP0010 P270 S12 数据表 10 F 25 mOhms 30.5 mm 10 mm (0.394 in)
BCAP0050 P300 X11 BCAP0050 P300 X11 数据表 50 F 10 mOhms 41 mm 18 mm (0.709 in)
BCAP0050 P270 S01 BCAP0050 P270 S01 数据表 50 F 10 mOhms 41 mm 18 mm (0.709 in)
BCAP0010 P300 X11 BCAP0010 P300 X11 数据表 10 F 20 mOhms 30.5 mm 10 mm (0.394 in)
BCAP0100 P300 S17 BCAP0100 P300 S17 数据表 100 F 4.5 mOhms 46 mm 22 mm (0.866 in)
