Microchip Technology VSC7414以太网交换机

Microchip VSC7414以太网交换机具有同类最佳功率和小巧外形，是一款11端口串行千兆位介质无关接口 (SGMII) 交换机。VSC7414包括九个10/100/1000Mbps SGMII/SerDes端口和两个1G/2.5G SGMII/SerDes端口。该款以太网交换机采用两层结构，具有基于TCAM的高级VLAN以及高服务质量 (QoS)。VSC7414交换机包括一个嵌入式416MHz MIPS处理器（32位CPU），其配有DDR2/DDR3外部存储器。该交换机可在-40ºC至125ºC的温度范围内工作，功耗为1.6W。VSC7414交换机有2线、JTAG、SPI和SIO接口类型可选。应用包括企业路由、工业交换机和音频视频桥接 (AVB) 应用。

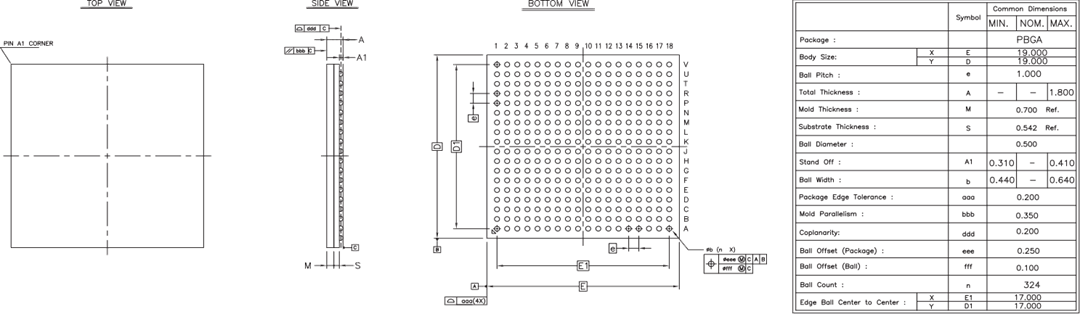

The Microchip Technology VSC7414-01 Layer-2 GbE SGMII Ethernet Switch is housed in a lead-free Ball Grid Array (BGA) with a 19mm x 19mm body size, 1mm pin pitch, and 1.8mm maximum height.

特性

8x 1G Ethernet ports, which are tri-speed 10/100/1000 Mbps ports
2x 5G Ethernet ports, which are quad-speed 10/100/1000/2500 Mbps ports
1x 1G Node Processor Interface Ethernet port, which is a tri-speed 10/100/1000 Mbps port
All ports support both 100-BASE-FX and 1000-BASE-X-SERDES
Eight megabits of integrated shared packet memory
Fully non-blocking wire-speed switching performance with weighted random early detection (WRED) for all frame sizes
Eight QoS classes and eight queues per port
108 dual leaky bucket policers, per QoS class and per port
64 dual leaky bucket policers, flow-based through TCAM matching
DWRR and strict priority egress scheduler and 9 dual leaky bucket

Up to 1024 TCAM-based classification entries for Quality of Service (QoS) and VLAN membership
Up to 1024 host identity entries for source IP guarding
Up to 512 TCAM-based security enforcement entries
Up to 1024 TCAM-based egress tagging entries
L1 Synchronous Ethernet
VeriTime delivers accurate IEEE 1588v2 timing implementation for both one-step and two-step clocks
Audio/Video bridging (AVB) with support for time-synchronized, low-latency audio and video streaming services
Energy Efficient Ethernet (IEEE 3az) supported by the switch core
VCore-III CPU system with integrated 416MHz MIPS 24KEc™ CPU with MMU and DDR3 SDRAM controller
PCIe x CPU interface
19mm x 19mm x 1.8mm BGA-324 package
