Mikroe MIKROE-1988 Color 2 click板
MikroElektronika MIKROE-1988 Color 2 click板设有板载Intersil ISL29125 RGB彩色光传感器。ISL29125可在各种照明条件下检测红色、绿色和蓝色。该彩色传感器是一款16位RGB传感器，分辨率数据的测量范围为5.7m lux至10,000 lux。范围和输出分辨率均可选（较窄和较宽带宽，12位和16位）。
An IR blocking filter is incorporated which allows the Color 2 click to work under a dark glass cover. Artificial light sources with 50Hz and 60Hz flicker are rejected by the integrated ADC.
The board communicates with the target MCU through the mikroBUS™ I2C interface (SCL and SDA pins). A programmable interrupt pin is also available. The board is designed to use a 3.3V power supply only.
特性
- Intersil ISL29125 16-bit RGB color sensor
- 5.7m lux -10,000 lux range
- IR blocking filter
- Selectable resolution
- ADC rejects 50Hz and 60Hz flicker from artificial sources
- Ready-to-use examples save development time
- I2C interface
- Supported in all Mikroe compilers
应用
- Ambient light color detector
- Dynamic display color balancing
- OLED display aging compensation

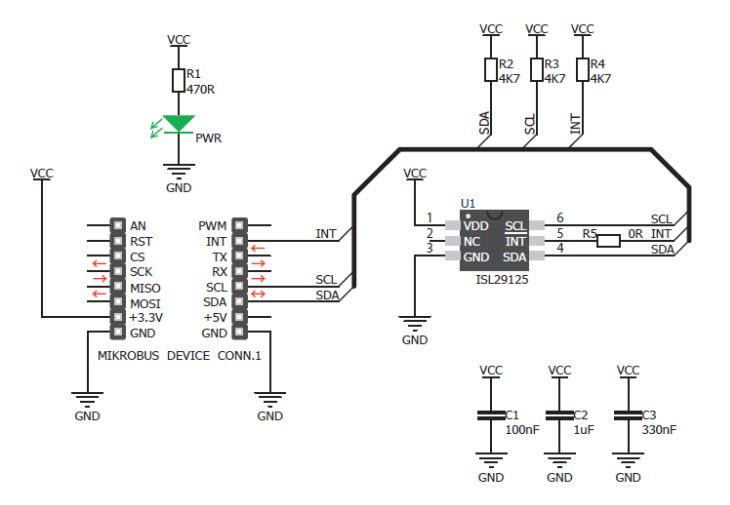

Schematic
视频
