Molex iPass+™ zHD垂直连接器

Molex iPass+™ zHD垂直连接器可在SAS-3和已规划SAS-4高速带宽下工作。这些薄型Molex连接器驱动下一代数据速率和端口密度，免去中平面连接，从而改善系统气流和信号完整性。Molex iPass+ zHD连接器是0.75mm脚距垂直连接器，提供鲁棒、牢固的连接，并可升级至96Gbps数据速率（四个达到24 Gbps的通道）该垂直压配iPass+ zHD连接器与常规iPass连接器相比，PCB上的端口数量几乎翻倍。一步式安装放置减少了与波峰焊接工艺有关的成本和时间。iPass+ zHD连接器匹配全部现有的miniSAS HD (Molex iPass+ HD)无源铜缆、有源铜缆和光缆组件。安全锁定装置确保可靠的电缆组件插配。这些多样压配iPass+ zHD连接器备有多种配置(1x1、1x2、1x4)，可适应一系列高密度数据和网络应用。

The vertical press-fit iPass+ zHD connector nearly doubles the number of ports on the PCB compared to conventional iPass connectors. One-step placement reduces cost and time associated with the wave solder process. These iPass+ zHD connectors mate to all current miniSAS HD (Molex iPass+ HD) passive copper, active copper, and optical cable assemblies. A positive locking latch ensures secure mating retention to cable assemblies. Available in multiple configurations (1-by-1, 1-by-2, 1-by-4), these versatile press-fit iPass+ zHD connectors accommodate a range of high density data and networking applications.

特性

  • Meets SAS-3 and projected SAS-4 high-density requirements
    • Provides nearly double the number of QSFP+ ports
  • Data rates scalable up to 96 Gbps (24 Gbps over 4 lanes)
    • Supports projected SAS-4 high-speed data rates
  • Vertical, low-profile press-fit connection on the PCB
    • Provides a robust and secure connection and excellent signal integrity (SI)
    • One-step placement eliminates cost and time associated with wave solder process
    • Improves system airflow and reduces board-space constraints by eliminating midplane connectors
    • Flexible design for use with midplane connectors if required
  • Waferized design with optimized PCB footprint
    • Provides low insertion loss (IL), low integrated cross-talk noise (ICN), low return loss (RL) and minimal performance variation across all high-speed channels
  • Positive locking latch
    • Improved latch ensures secure mating retention to cable assemblies
  • Multiple versions available (1-by-1, 1-by-2, 1-by-4)
    • Provides design flexibility
  • Mates to all current miniSAS HD cable products
    • Backward compatible with industry standard iPass+ HD (also referred to as miniSAS HD) passive copper, active copper and optical cable assemblies

应用

  • Server/Storage
    • HBAs (Host Bus Adapters) servers
    • Host system boards
    • Storage racks
    • Switches
    • Blades
    • Storage bridge bay
    • RAIDs (Redundant Array of Individual Disks)
    • JBODs (Just a Bunch of Disks)
  • Computer Applications
    • Tower and rack-mount computers
    • Work stations

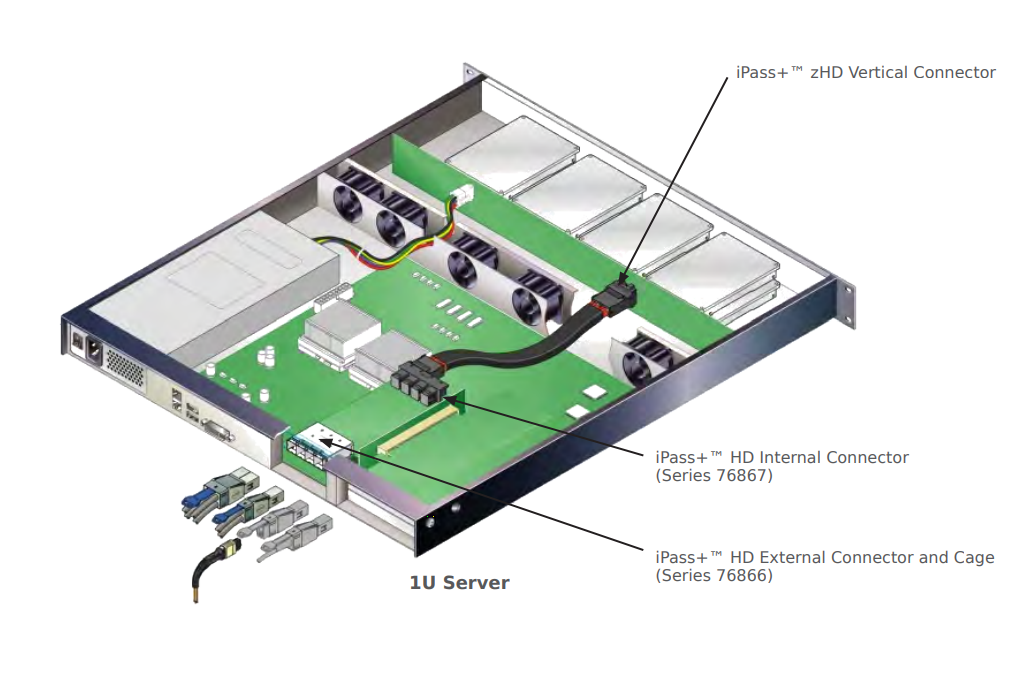

1U Server Diagram

图表 - Molex iPass+™ zHD垂直连接器
